100W solar kit system with flexible solar panel 100W 10A solar charge controller 500w pure sine wave inverter 2M solar cable

Availability:

980 in stock


$592.00

980 in stock

100W solar system solar kits flexible panel 100W 10A solar controller 500w pure sine wave inverter 2M solar cable

Package List

1, Flexible solar panel 100w 18v, 1050*540*2.5mm, 1pcs

2, Cables&MC4 Connectors On back of Solar Panel or on front of the panel, pls decide and let us know!!!

3, 10A 12v/24v auto solar controller,

4, 500w pure sine wave inverter.

5, 1M solar cables 2.5MM2 red; 1M solar cable 2.5mm2 black

Certifications:

Warranty

  • 25 year power warranty: 95% power/5 years, 90% power/10 years, 80% power/25 years
  • 5 year warranty on parts and labor

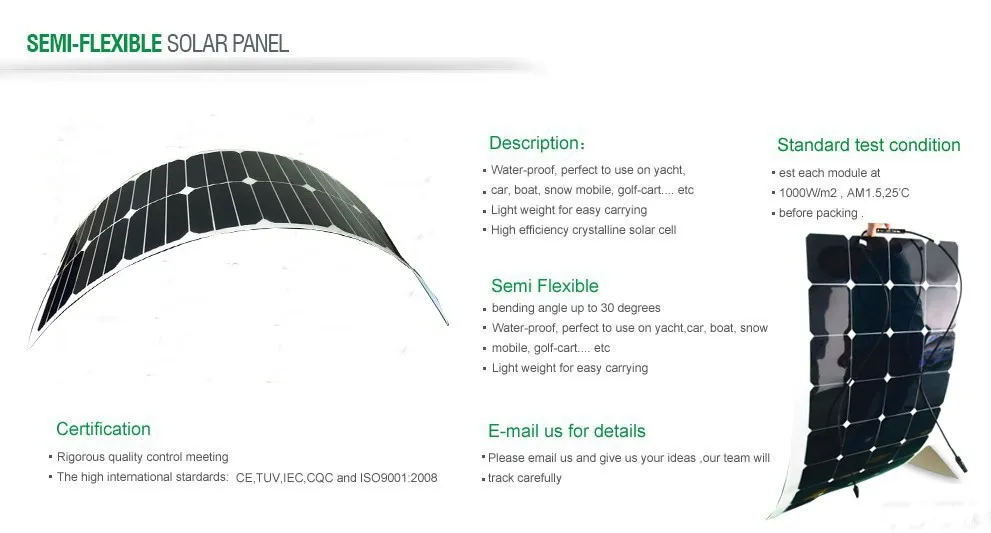

flexible solar panel

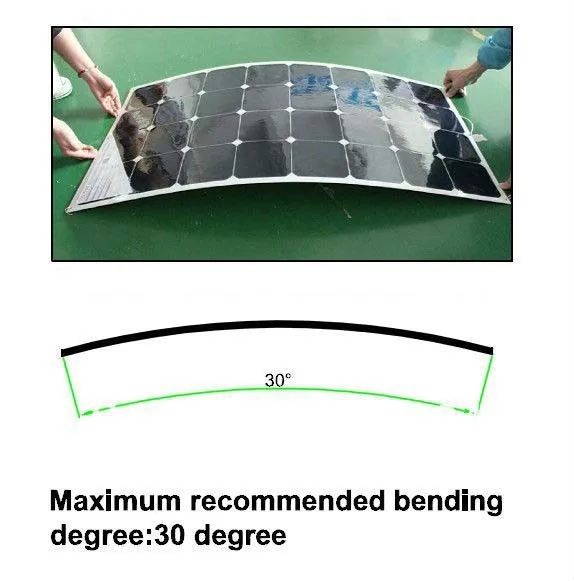

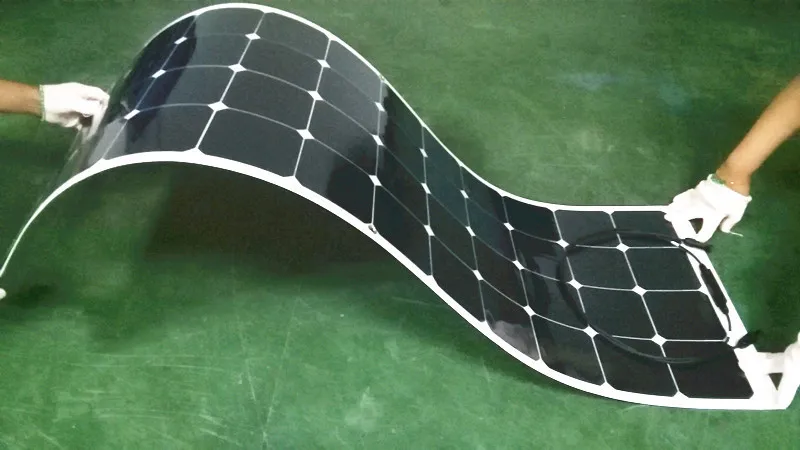

High efficiency bendable solar panel

High efficiency bendable solar module adopts the highest efficiency cell in the world from USA, with efficiency up to 20% or highter,

which enable 25-30% higher power generation than the conventional PV modules at the same size.

By adopting the back contact technique,the cell can be coated with the flexible materials and finally forms the high efficiency flexible solar panel.

This kind of solar panel can be widely used in the field of Electric Golf Car,Patrol Car,Travel Tourism Car,Yacht,Roof Power generation,Backpack,Tent and so on.

flexible solar panel

exible solar panel

Technical Specification

Maximum power voltage 18.0±0.3V
Maximum power current 5.55A
Open circuit voltag V 20V
Short circuit current A 6.11A
Size of module (wide and high) 1050mm*540mm*2.5mm
Number of cells 32PCS
Size of cells(wide and high) 125mm*125mm , Monocrystalline
Weight per piece kg 1.5KGS
Temperature coefficient of Isc ±0.05%°C
Temperature coefficient of Voc -0.33%°C
Temperature coefficient of power ) -0.23%°C
NOCT(nominal operating cell temperature) 45°C(±°C)

flexible solar panel

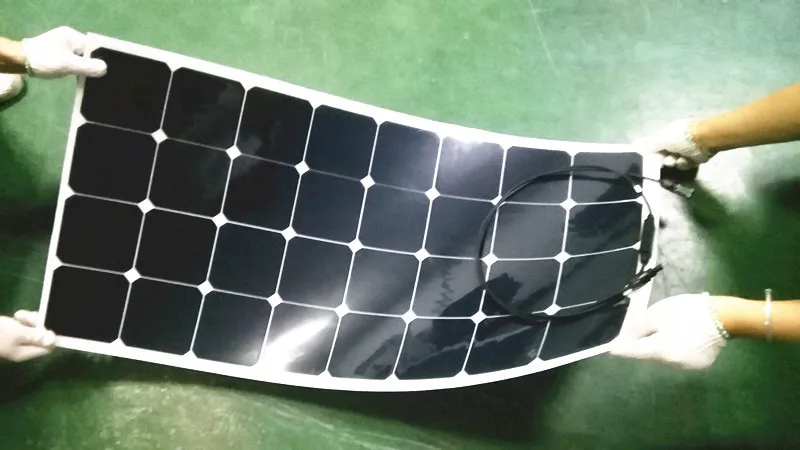

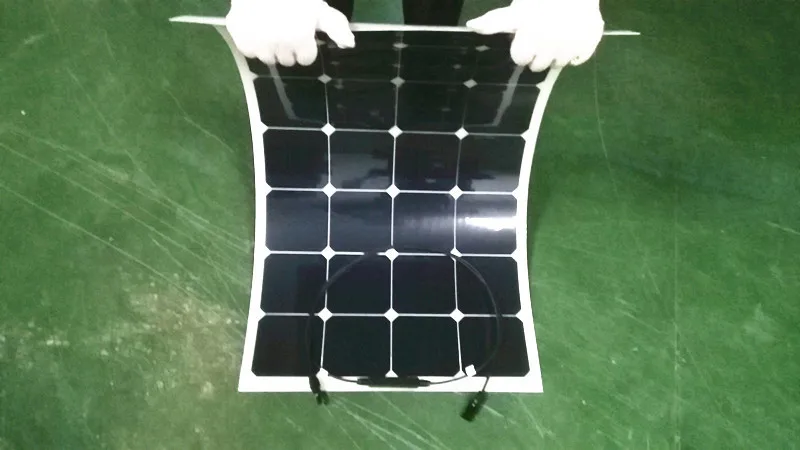

Product Pictures Show fleible solar panel

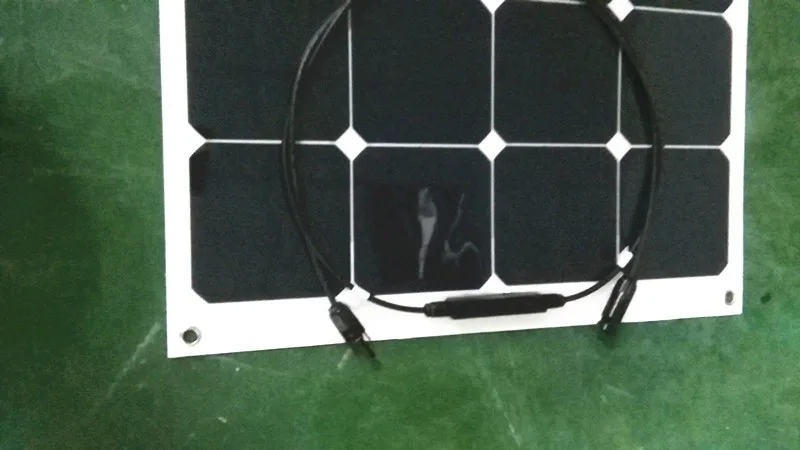

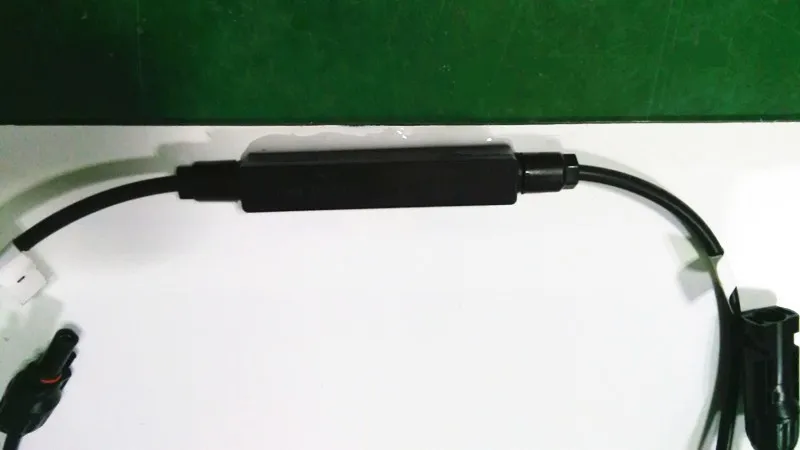

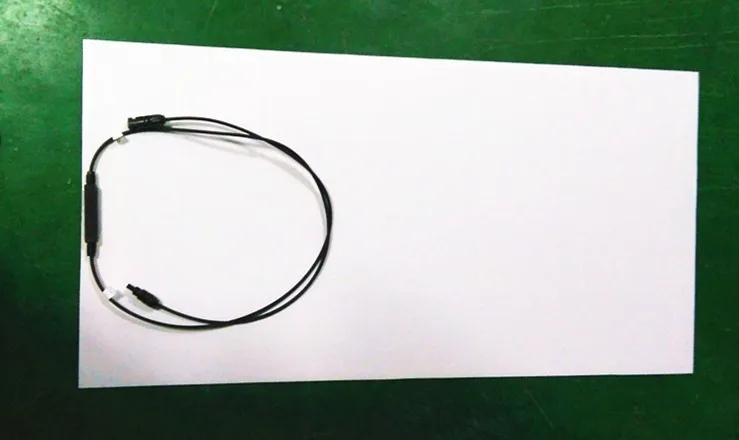

Connection Box And solar cable in front side of flexible solar panel

flexible solar panel

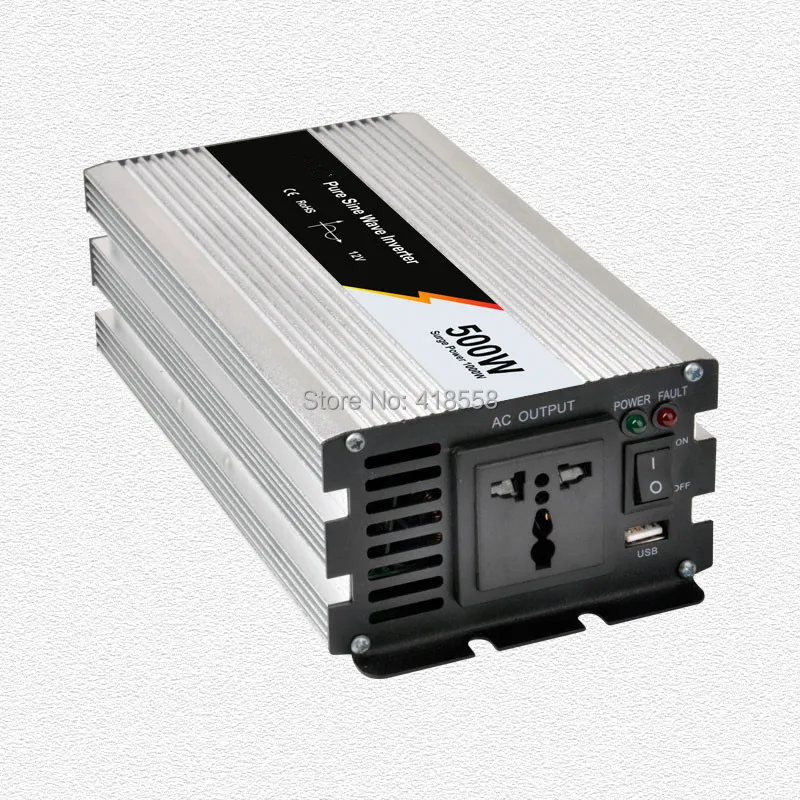

500w Pure Sine Wave Inverter

10A, 12v/24v Auto Charge Controller

Solar Cable 2.5MM2

Connection Diagram
