100W200W300W400W500W600W 12V/24V 3/5 blades for home residential low start up wind turbine generator kit+ charge controller

Availability:

10 in stock


$122.40$356.40

with controllerwithout controller
5 Blades3 Blades
300W 12V300W 24V400W 12V400W 24V500W 12V500W 24V600W 12V600W 24V
Clear

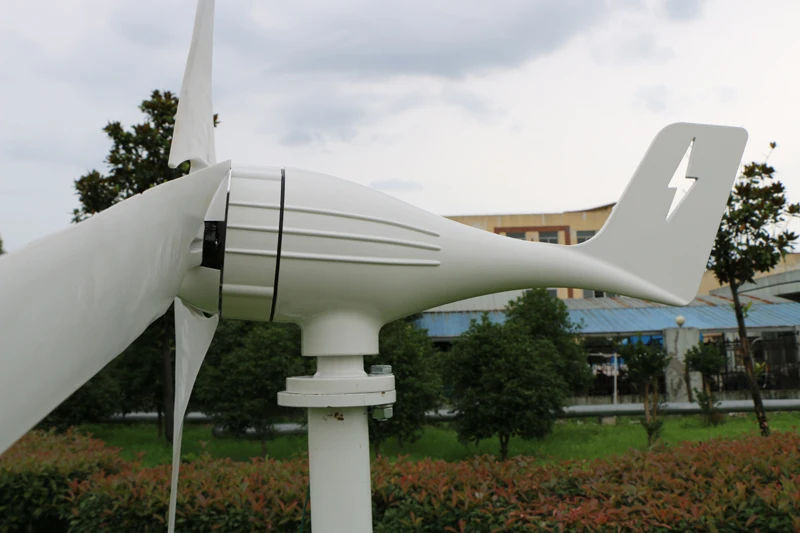

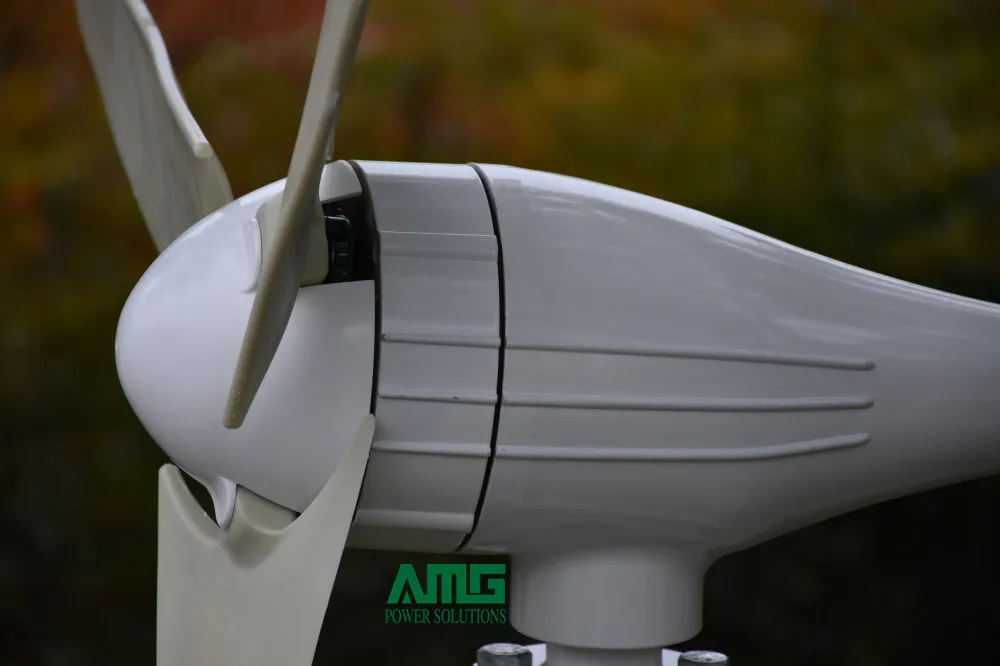

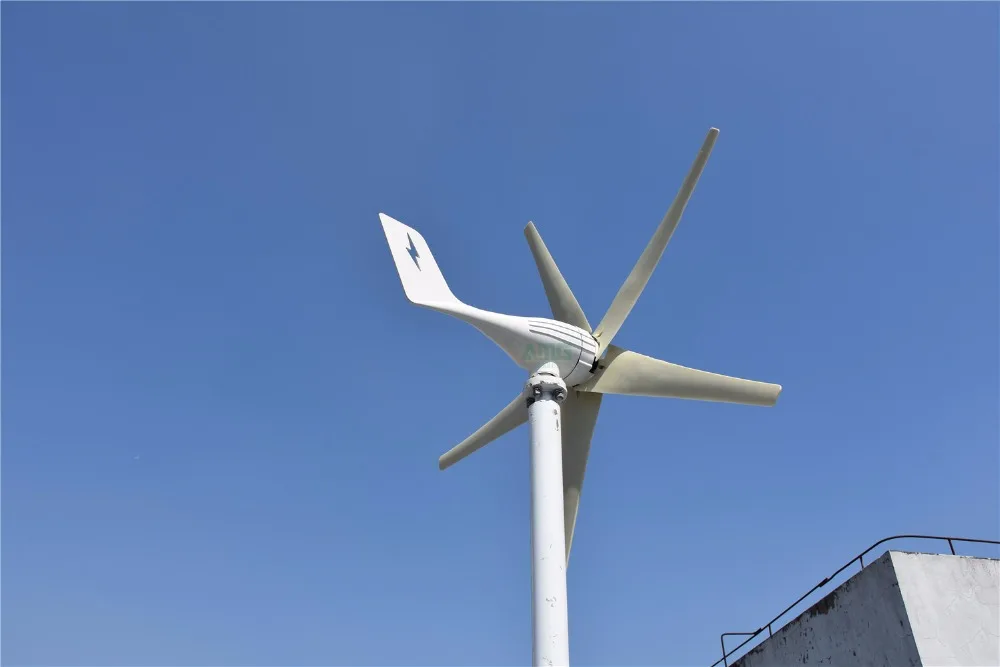

Generator
3 phase permanent magnet synchronous AC generator
Magnet NdFeB
Generator housing Casting aluminum alloy
Blades material Germany Nano nylon glass fiber
Control system Electromagnet/wind wheel yaw
Speed regulation Automatically adjust windward direction
Working temperature – 50degree ~ -60degree
Design life 20 years

Low start up wind speed, 2m/s, this wind generator, we would recommend 5 blades model for low wind area, and 3 blades for average high wind aea.

Low vibration running, the blades with nylon composite materials ,using new art of precision injection molding, with the optimization of aerodynamic design and structural design, and with automatic yaw, safe and reliable operation.

High output, permanent magnet generator rotor using patented alternator, together with the special stator design, effectively reduce the generation of resistance torque and enhance generation perfomance.

IP65, applicable in harsh environment, aluminum alloy body, anti-corrosion treatment,resistant to to acid and alkali, applicable in salty and other harsh environment.

20-years long service life, internal motor labyrinth design, all internal fasteners are stainless steel made, external fasteners are high strength zinc-coated, with ensures the wind generator’s strength and duration.

​Thanks for Mr Vlad Smirnov’s advice, now we also present a flange along with the turbine, which could be welded on the pole to match turbine’s bottom flange.

Waterproof wind controller

Model

WW06-12-B00

Rated battery voltage

12V

Rated wind turbine power

600W

Max wind turbine power

800W

Braking current

45A

Charge Shutoff Voltage

14.5V

Charge Recovery Voltage

13.2V

Display

LED,digital

Unloaded current

≤20 mA

Display content

Overvoltage,over discharge,braking

Protection

Overcharge of battery,reverse connection of battery,lighting,current limit of wind turbine,auto-brake and manual brake of wind turbine

Working temperature/humidity

-20~+55℃/35~85%RH(without condensation)

Temperature compensation(optional)

-4mV/℃/2V ,–35℃–+80℃ ,accuracy:±1℃

Dimension

100×105×49mm
