Sale!

1pc x 10A Solar system Controller PWM 12V 24V LCD Display USB 5V Solar kits Regulator

Availability:

5000 in stock


$16.58 $25.50

5000 in stock

10A 12V 24V intelligence Solar cells Panel Battery Charge Controller Regulators LCD Display with 5V USB

Package:

1.1X 10A Solar Contorller

2.1X User Manual

KW1210 controller is a kind of intelligent, multi-purpose solar charge and discharge controller. Fixed LCD display with a very friendly interface is used in this product; various control parameters can be flexibly set, fully meet your various application requirements.

>>PRODUCT FEATURES

1.Build-in industrial micro controller.

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

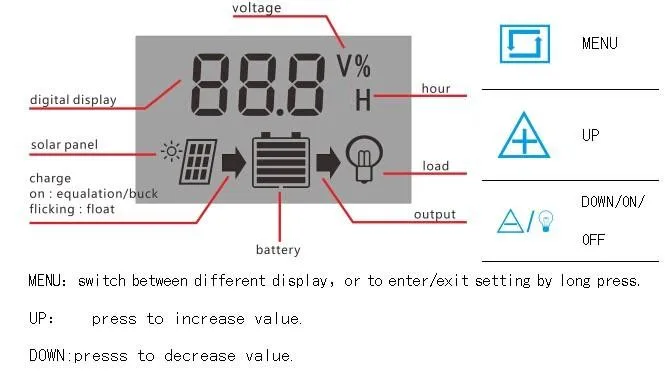

>>LCD DISPLAY/KEY

>> SYSTEM CONNECTION

1.Connect the battery to the charge regulator – plus and minus.

2.Connect the photovoltaic module to the regulator – plus and minus.

3. Connect the consumer to the charge regulator – plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!


Note it:

1.press the [Down] button to ON/OFF load manully at main display.

2.the work mode is working as below:

[24H] load output 24hours

[1-23H] load on after sunset and closed after setting hours

[0H] Dusk to dawn

>> TECHNICAL PARAMETER

MODEL KW1210 KW1220 KW1230 KW4820 KW4830
Batt voltage 12V/24V auto 48V
Charge current 10A 20A 30A 10A 20A
Discharge current 10A 20A 30A 10A 20A
Max Solar input <50V <80V
Equalization B01 sealed B02 Gel B03 flood
14.4V 14.2V 14.6V
Float charge 13.7V(defaul,adjustable)
Discharge stop 10.7V(defaul,adjustable)
Discharge reconnect 12.6V(defaul,adjustable)
USB output 5V/3A
Self-consume <10mA
Operating temperature -35~+60 C
Size/Weight 150*78*35mm /150g

*all voltage X2 ,X4 while using 24V /48V system.

if you have any question of above item, please contact me by massager of talk with me, user manual and specification are

available on request.
