2.13inch e-Paper HAT 250×122 2.13inch E-Ink Display for Raspberry Pi 3B/2B/Zero/Zero W SPI interface Supports Partial Refresh

Availability:

137 in stock

£34.18 £35.98

China
Clear

DESCRIPTION

250×122, 2.13inch E-Ink display HAT for Raspberry Pi, SPI interface

Overview

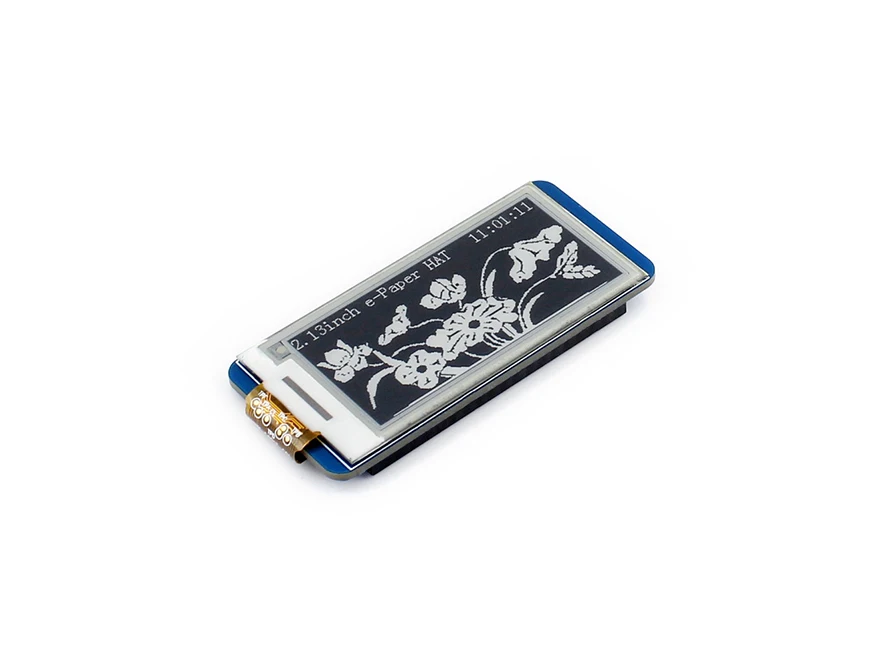

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250×122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing

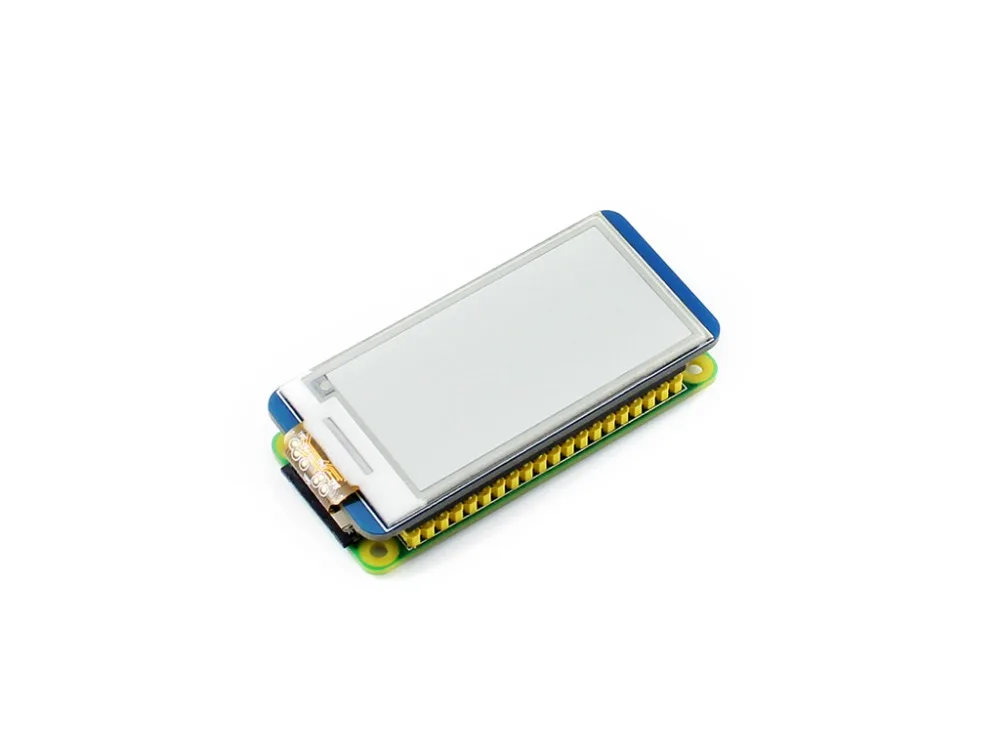

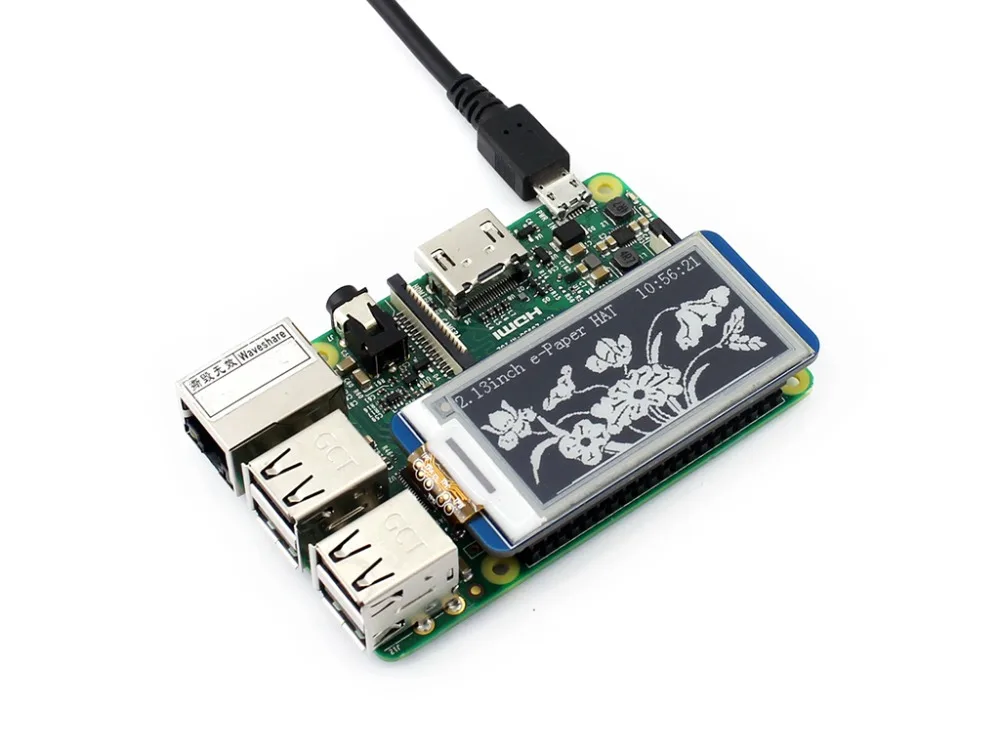

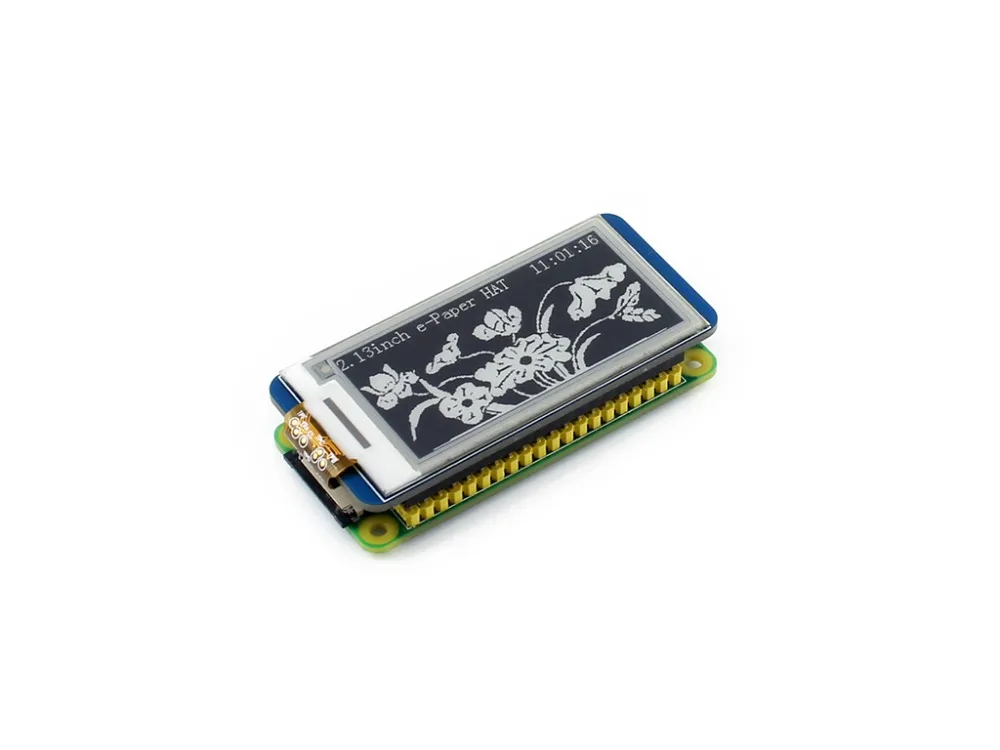

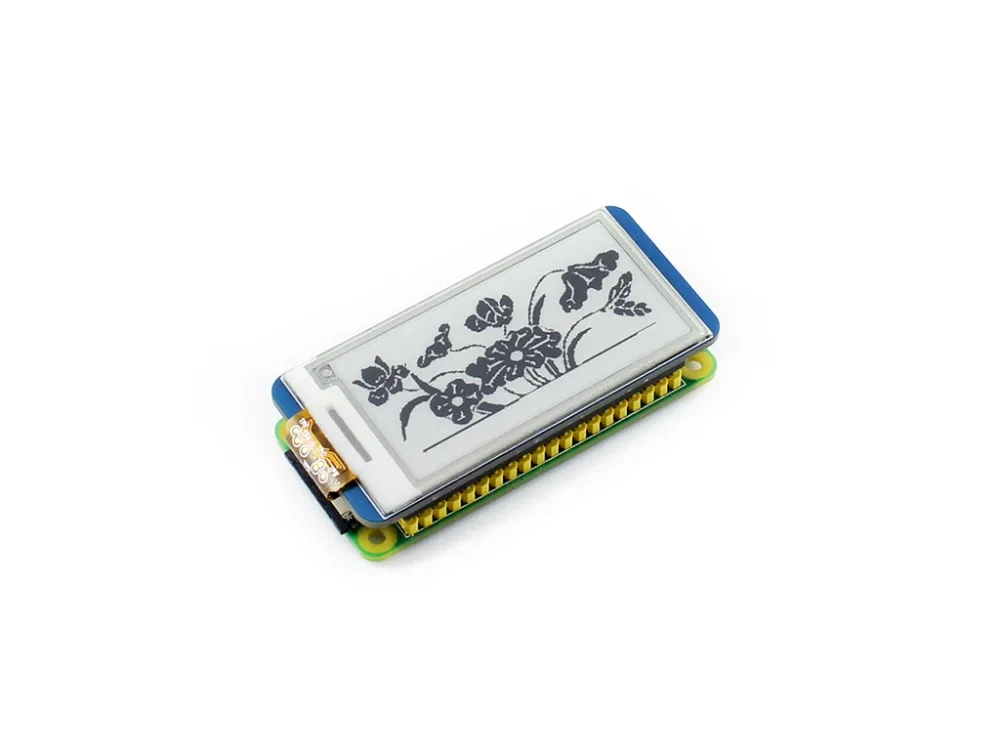

  • Compatible with Raspberry Pi 2B/3B/Zero/Zero W

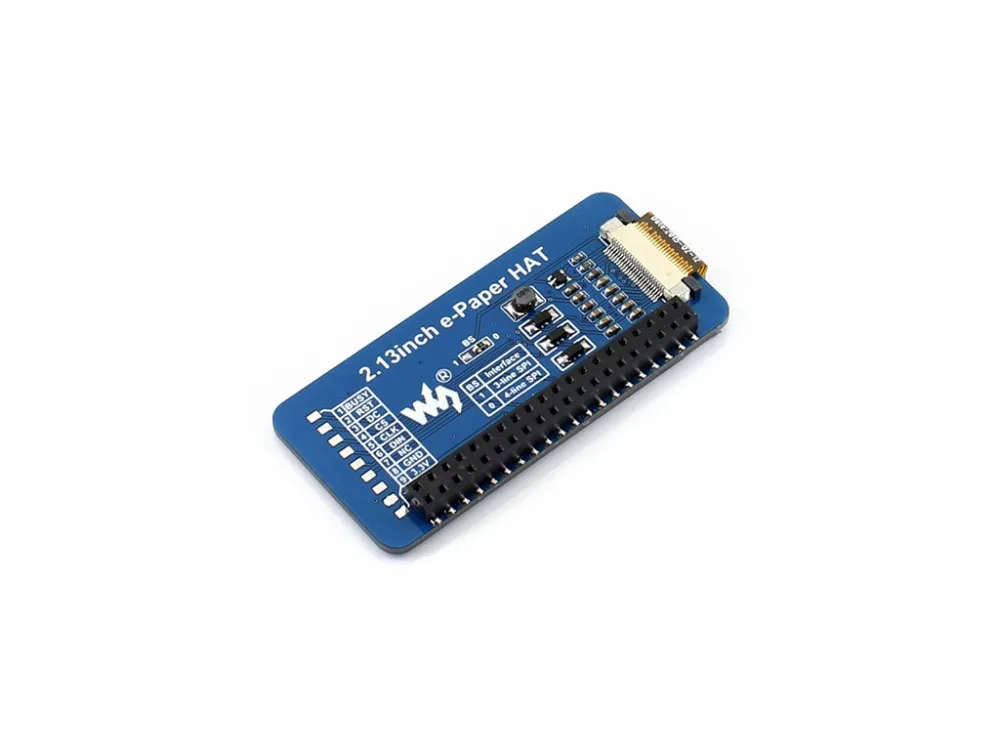

  • Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
  • Comes with development resources and manual (examples for Raspberry/Arduino/STM32

Specifications

  • Operating voltage: 3.3V
  • Interface: SPI

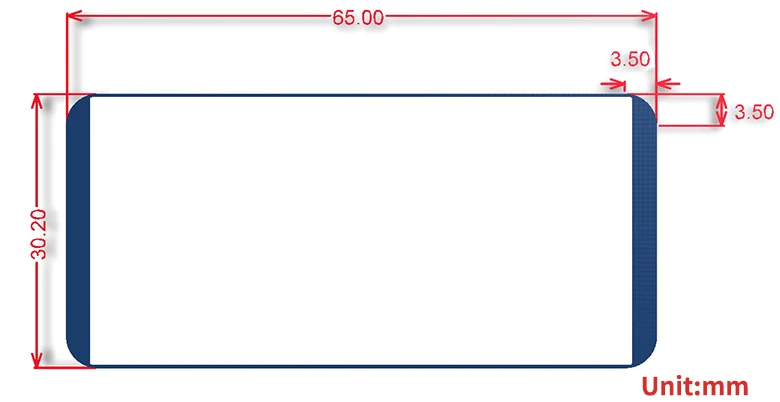

  • Outline dimension: 65mm × 30.2mm
  • Display size: 23.71mm × 48.55mm
  • Dot pitch: 0.194 × 0.194
  • Resolution: 250 × 122
  • Display color: black, white
  • Grey level: 2
  • Full refreh time: 2s
  • Refresh power: 26.4mW(typ.)
  • Standby power: <0.017mW
  • Viewing angle: >170

Interface

Development Resources

Wiki :

Selection Guide

Part Number

Colors

Grey Level

Resolution

Display size(mm)

Outline Dimension (mm)

Partial Refresh Time (s)

Full Refresh time (s)

Interface

Pi Header1

black, white

2

200×200

27.60 × 27.60

48.0 × 33.0

0.3

2

SPI

x

red, black, white

2

200×200

27.60 × 27.60

48.0 × 33.0

N/A

8

SPI

x

black, white

2

250×122

48.55 × 23.71

65.0 × 30.2

0.3

2

SPI

red, black, white

2

212×104

48.55 × 23.71

65.0 × 30.2

N/A

15

SPI

black, white

2

264×176

57.29 × 38.19

85.0 × 56.0

N/A

6

SPI

red, black, white

2

264×176

57.29 × 38.19

85.0 × 56.0

N/A

15

SPI

black, white

2

296×128

66.89 × 29.05

89.5 × 38.0

0.3

2

SPI

x

red, black, white

2

296×128

66.89 × 29.05

89.5 × 38.0

N/A

15

SPI

x

black, white

2

400×300

84.80 × 63.60

103.0 × 78.5

N/A

4

SPI

x

red, black, white

2

400×300

84.80 × 63.60

103.0 × 78.5

N/A

15

SPI

x

black, white

4

800×600

88.00 × 66.00

118.0 × 75.0

N/A

1.5

UART

x

black, white

2

640×384

163.20×97.92

170.2×111.2

N/A

6

SPI

red, black, white

2

640×384

163.20×97.92

170.2×111.2

N/A

31

SPI

  1. Standard Raspberry Pi header on module, allowed to be attached onto Pi directly, compatible with Raspberry Pi 2B/3B/Zero/Zero W

PACKAGE CONTENT

  1. 2.13inch e-Paper HAT x1
  2. RPi screws pack (2pcs) x1
  3. 9-pin 2.54 pitch SMD pinheader x1
