3 Blades 400W 12v 24V Wind Turbine Generator With 12/24v auto Waterproof wind Charge Controller Wind Generator Kits

Availability:

170 in stock


$432.40 $470.00

12V24V
Clear

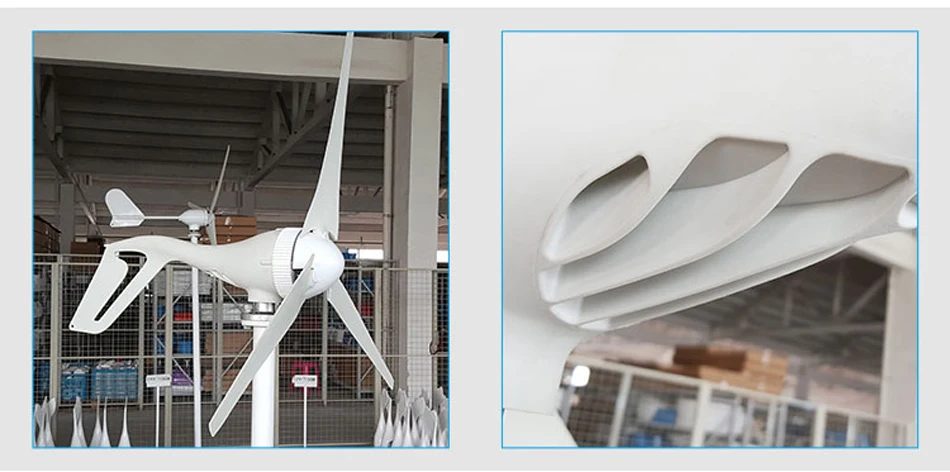

3 Blades 400W 12v 24V Wind Turbine Generator With 12/24v auto Waterproof wind Charge Controller Wind Generator Kits

Packing included:

1 x 400W 3 blades wind turbine

1 x wind charge controller

1 x user manual

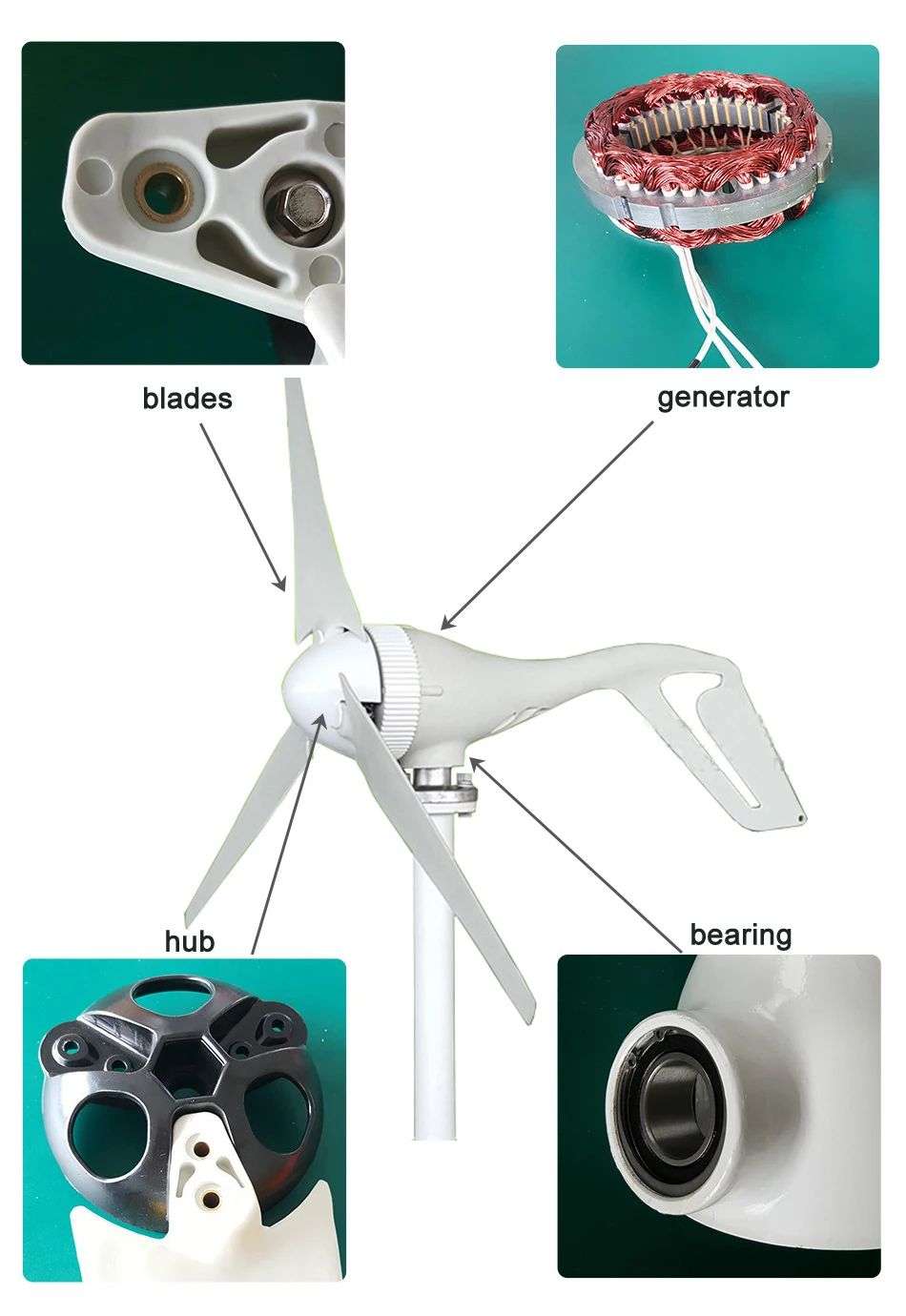

Specifications for wind turbine:

The generator power: 400 Watt

Output voltage: 12v/24V AC Optional

Start-up wind speed: 2.0m/s

Rated wind speed: 13.0m/s

Safe wind speed: 50m/s

Blades: 3 pcs

Wind blades material: Nylon fiber

Rotor diameter: 1.4m

Working temperature: -40 to +80 degree

Generator type: Three phase permanent magnet ac synchronous generator

Control system: Electromagnet

Speed regulation: Automatically adjust windward direction

Gross weight: 9.5kg about

Package dimension: 70*40*25cm

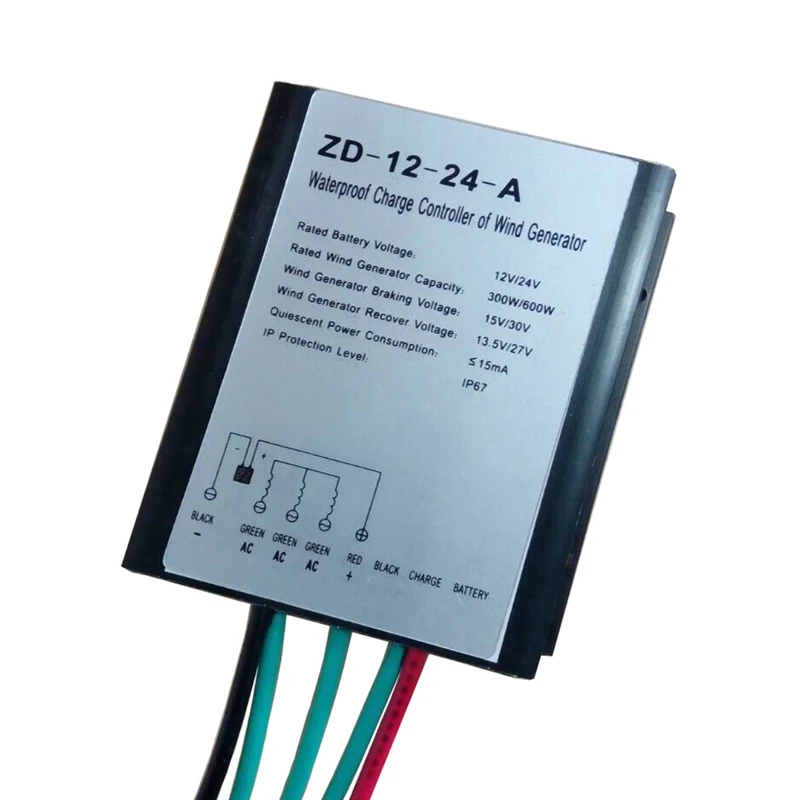

Specifications for wind controller:

Rated Battery Voltage

12V/24V

Automatically match with the voltage of the battery

Rated Wind Turbine Power

300/600W

Brake Down

15/30V

Restart

13.5/27V

Max Current

30A

Wokring Temperaure

-35 to 75 Degree Centigrade

Dimension

100MM*87MM*28MM

Protection Grade

IP67

How To Assemble?

  • First: Connect the red and black lines with the “+” &”-” of the battery bank
  • Second: Connect the three green wires with the output wires of the wind turbine generator

Notice:

  • Make sure the rated output voltage of the wind turbine same with the rated voltage of the battery bank.
  • Don’t directly connect the wind controller with the wind turbine until connected with the battery.

Instructions:

This wind controller has three indicator lights to show the working status of the system.

“Brake” Light

When the wind turbine generator is braked, the red light will be on.

When the battery full charged or the wind speed too high, it will happen.

“Charge” Light

The green light flashing means that the wind generator works and is charging the battery.

Flashing speed shows the rotate speed of generator.

“Battery” Light

This green light on means that the battery is connected correctly.
