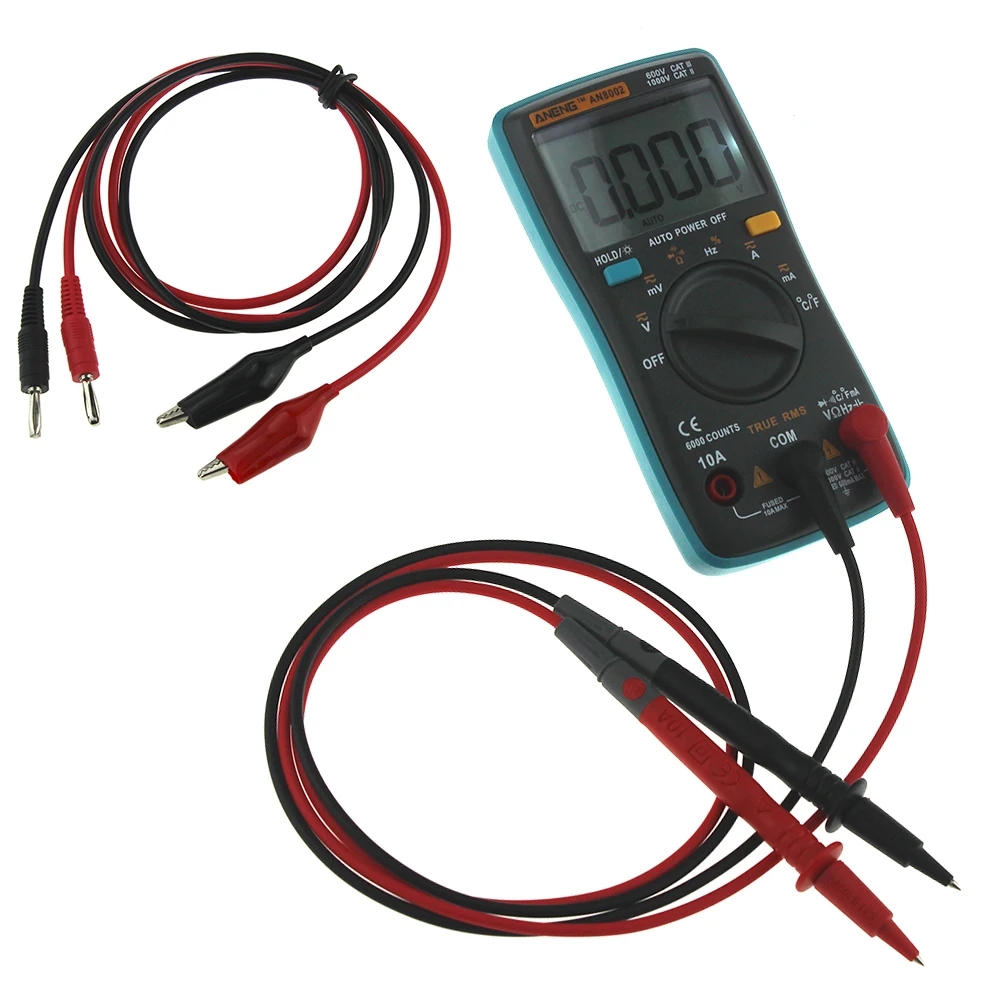

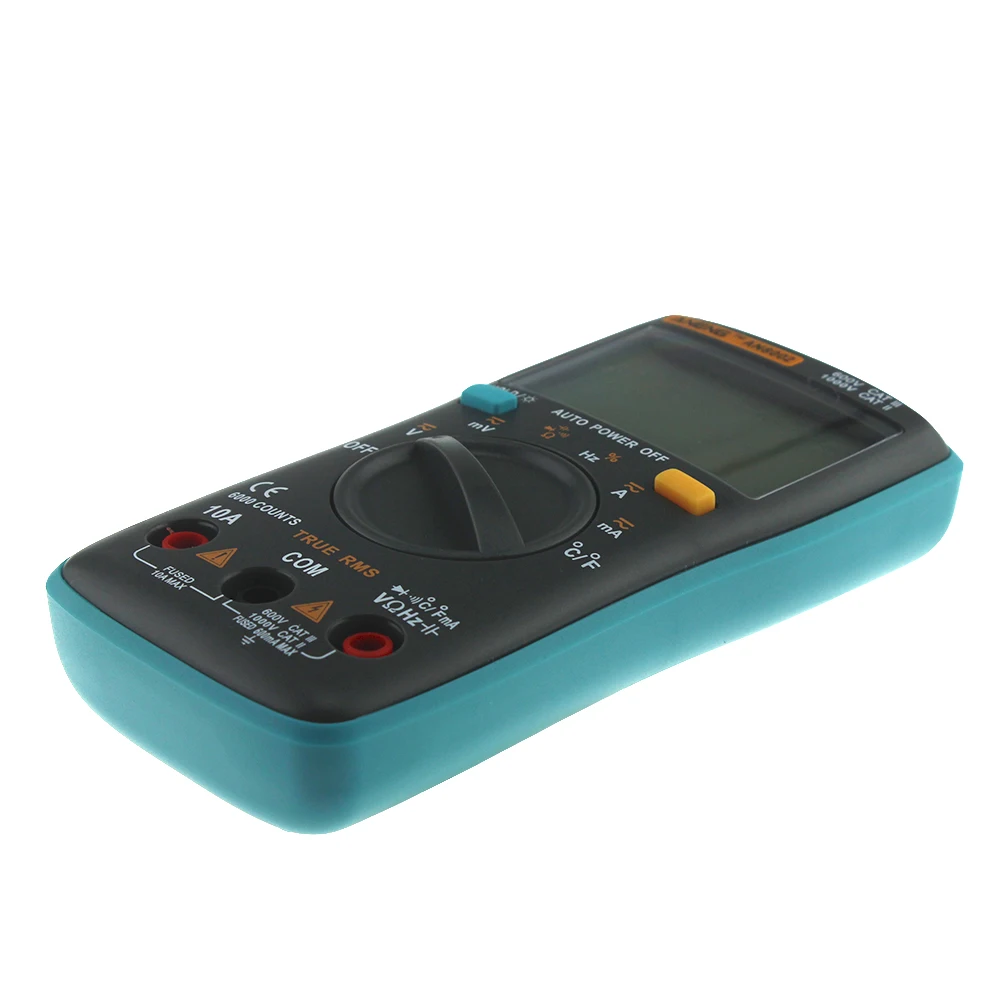

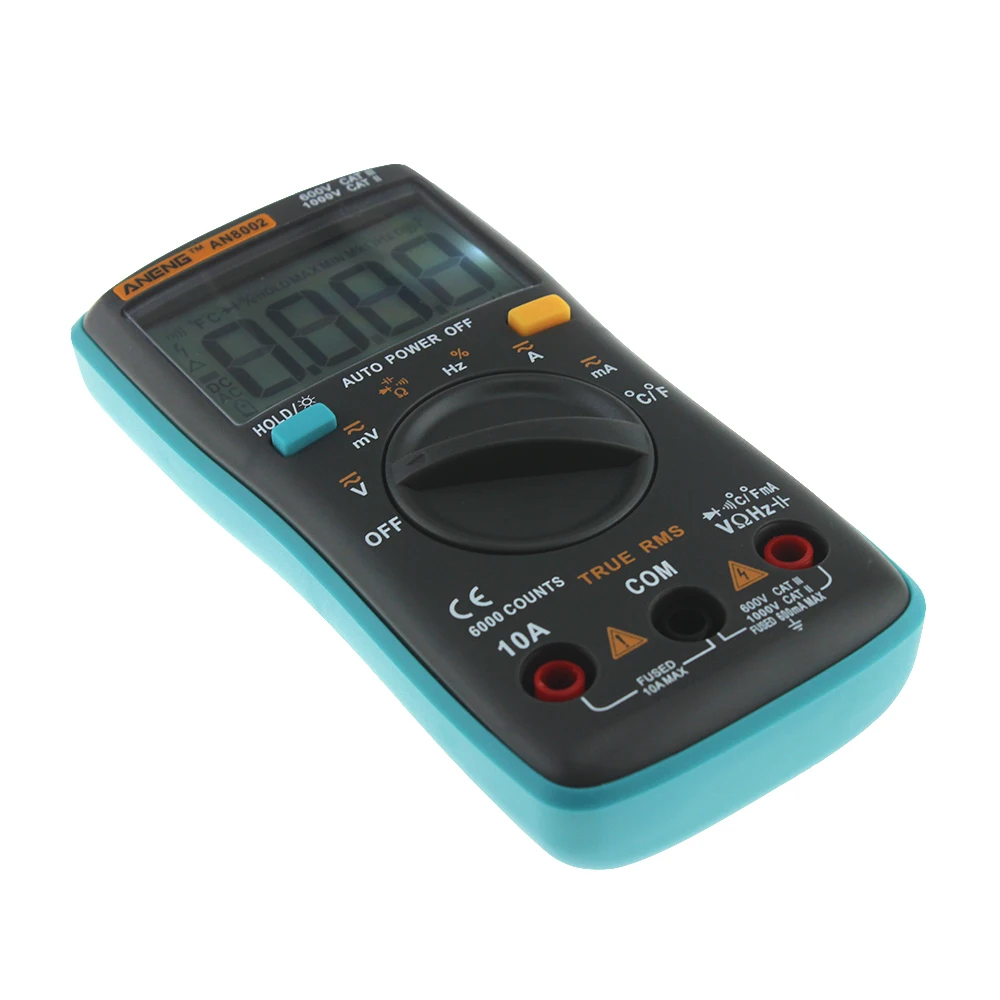

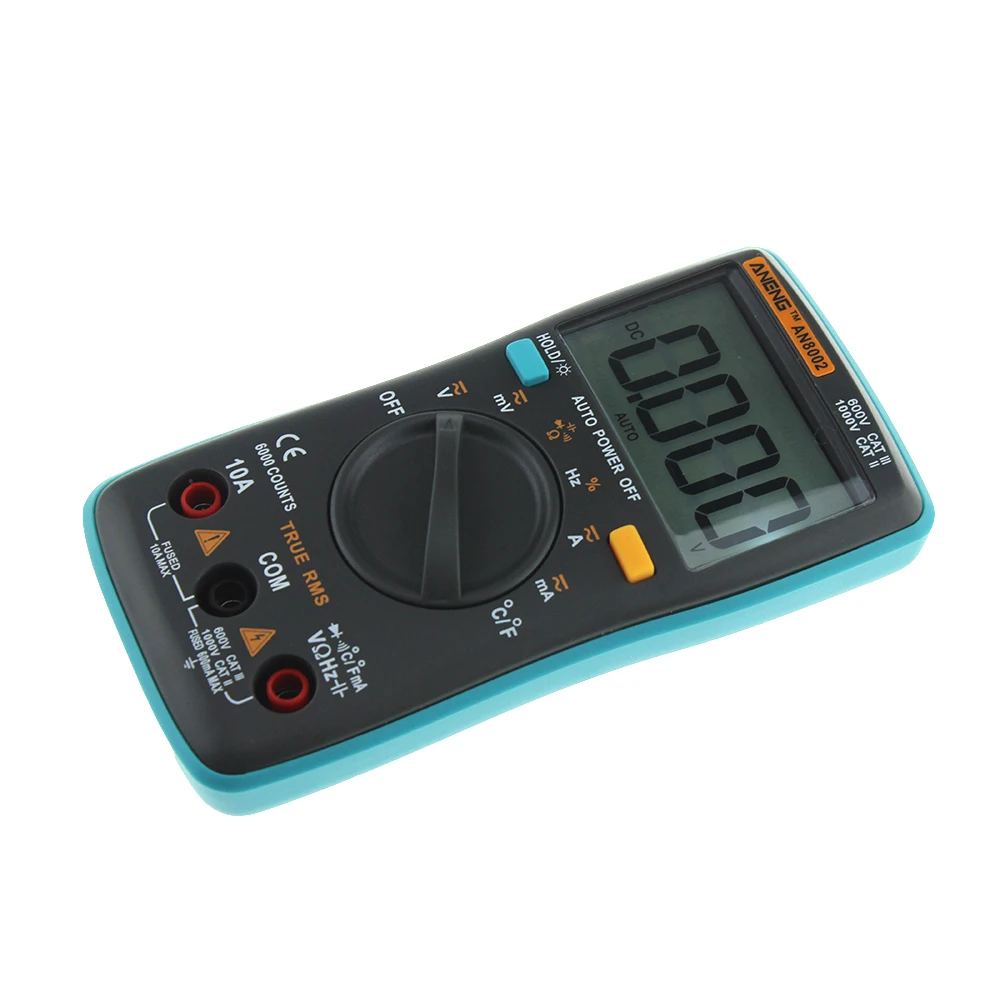

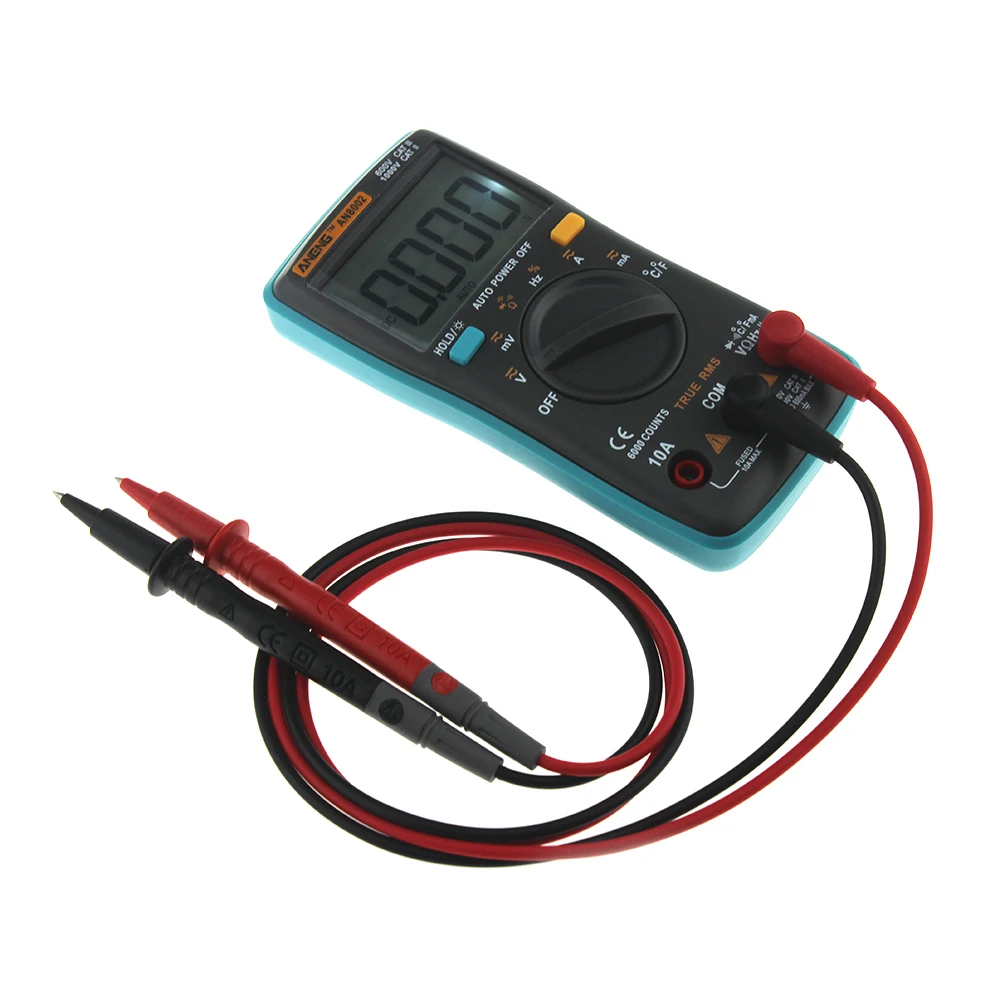

It is a Auto-ranging digital MultiMate using double-integral style A/D transform as the core.
Can be used to measures Temperature AC/DC Voltage AC/DC Current Resistance Capacitance Diode and Continuity testing temperature Frequency and Etc.
The products are battery powered they are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading are an ideal tools for lavatory radio fans and family use.
True RMS measurement.
Resistance capacitance frequency file high voltage 550V protection.
Large screen display, the maximum of 6000 words.
Sampling rate: about 3 times per second.
Polarity automatic recognition.
Low voltage display.
10A large current measurement MA level small current measurement Automatic shutdown.
Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance.
Diode / off measurement, frequency and duty ratio measurement.
Measurement mode: double-integral style A/D transform
Sample rate: 3 times per second
Over range indication: OL
Powered by 2 x AAA batteries (Not included).
Working Environment: 0-40 degrees relative humidity: <80%
Frequency measurement range: to 10MHz 1Hz
Temperature measuring range: -20℃ to 1000℃ (-4℉ to 1832℉ )
Capacitance measurement range: to 6000uF 10pF
AC voltage measurement range: to 750V 0.1mV
DC voltage measurement range: to 1000V 0.1mV
AC current measurement range: to 10A 0.1uA
DC current measurement range: to 10A 0.1uA
Resistance measurement range: 0.1 60M to
Width ratio measurement range: 1% to 99%
Product size: approx. 130*65*30mm/5.11*2.55*1.18”
Net weight: approx. 170g
Gross weight: approx.238g

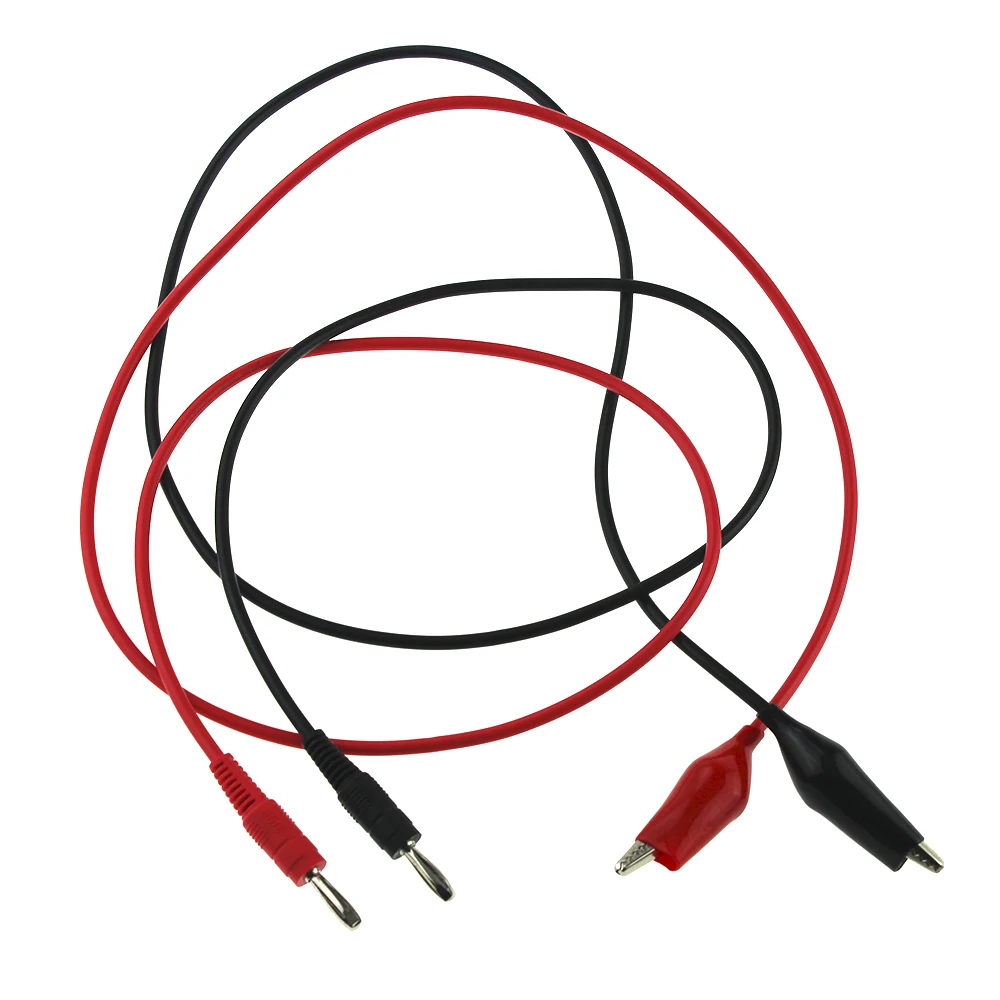

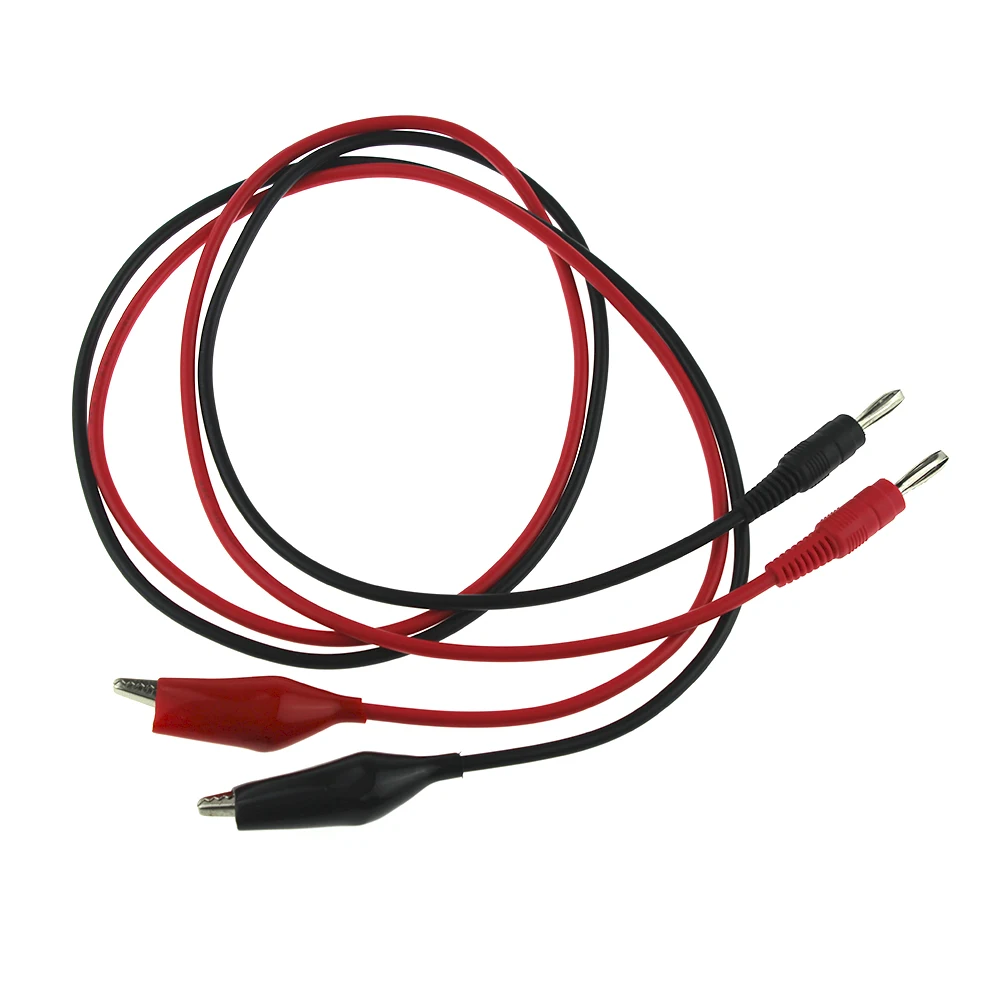

Quantity: 1set Alligator clip test wire (2pc)
Color: Black / red / Silver
Material: Silicone / metal
Network:: negative Positive Black
Cable length: 90cm 35 “/
It is one of the useful tools that will brings a lot of convenience for your electronic wor。Alligator Clip Test Lead can be used in electrical or laboratory electric testing work.
It is manual measurement there may be 1-3mm error. And item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same hope understanding.

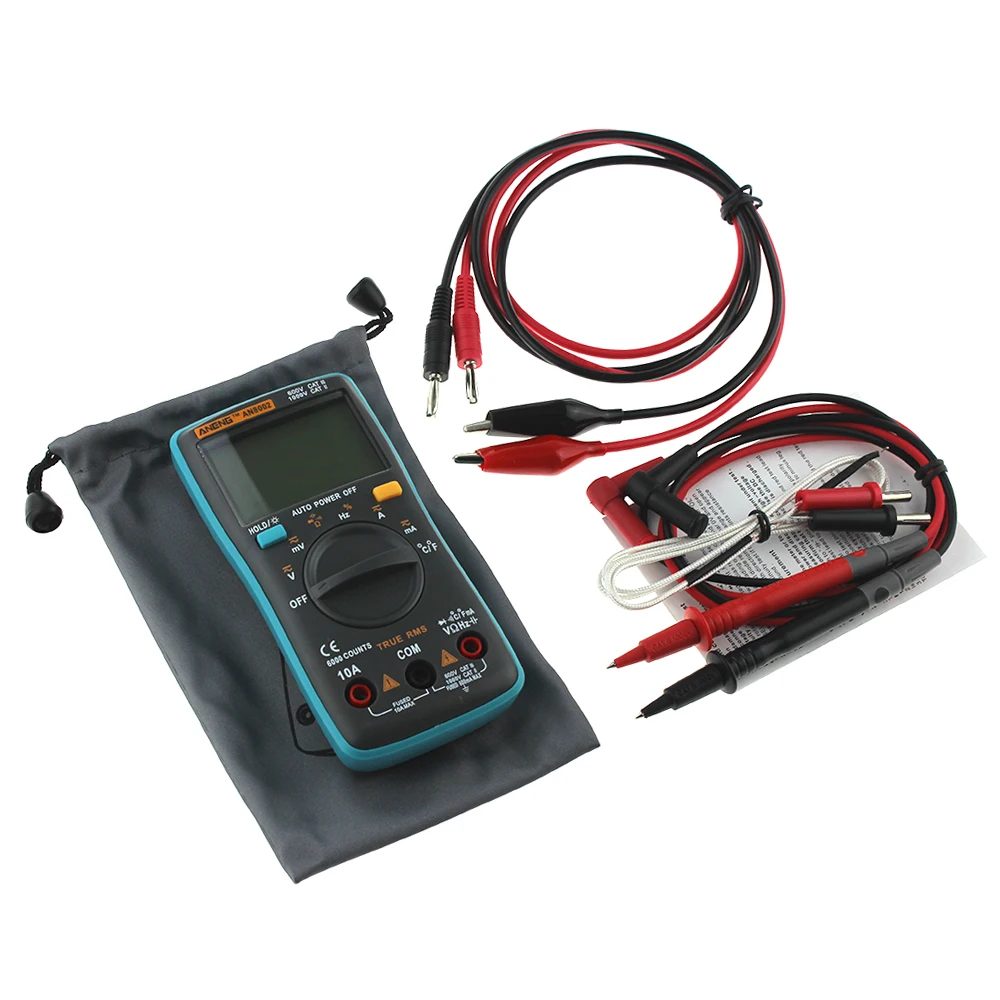

1 x 1 x Device (Battery not included)
2 x Test Lead Set

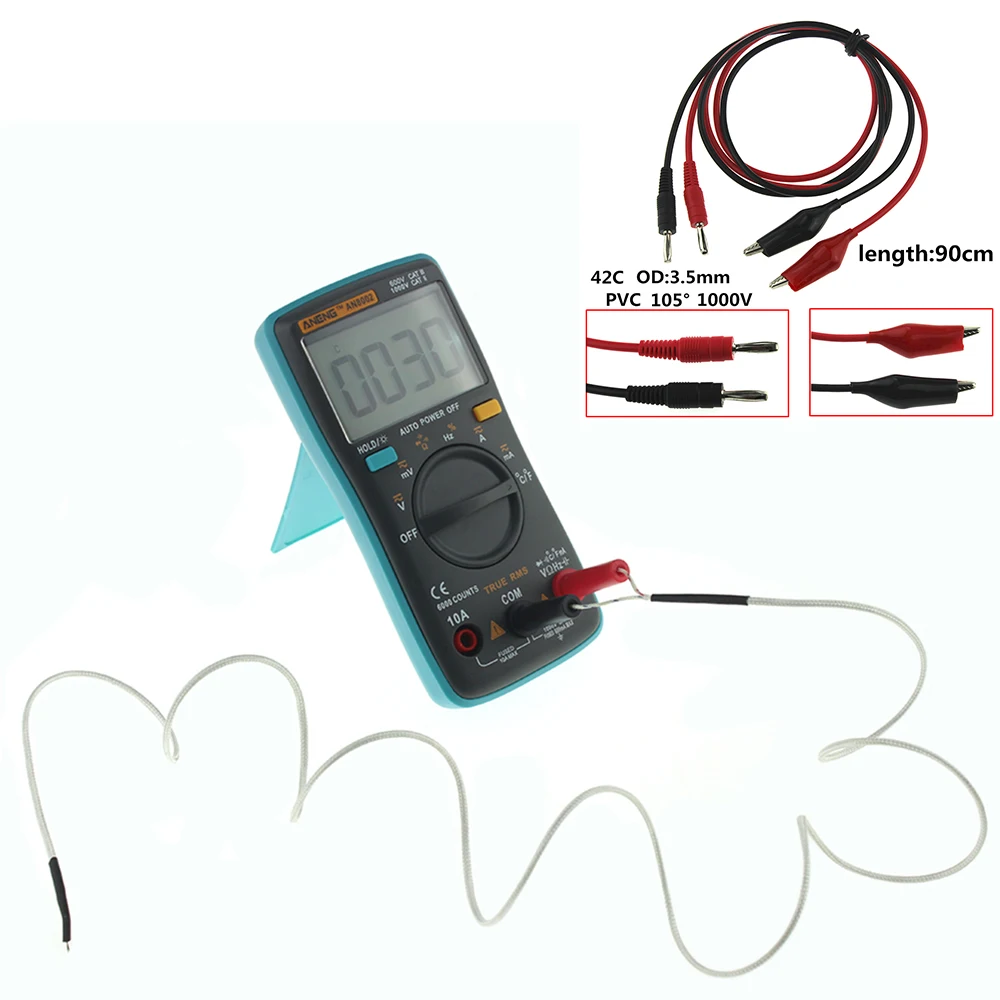

1 x Temperature Sensing Cable
1 x Storage Bag
1 x User Manual
1 x 2pcs Alligator clip test wire
