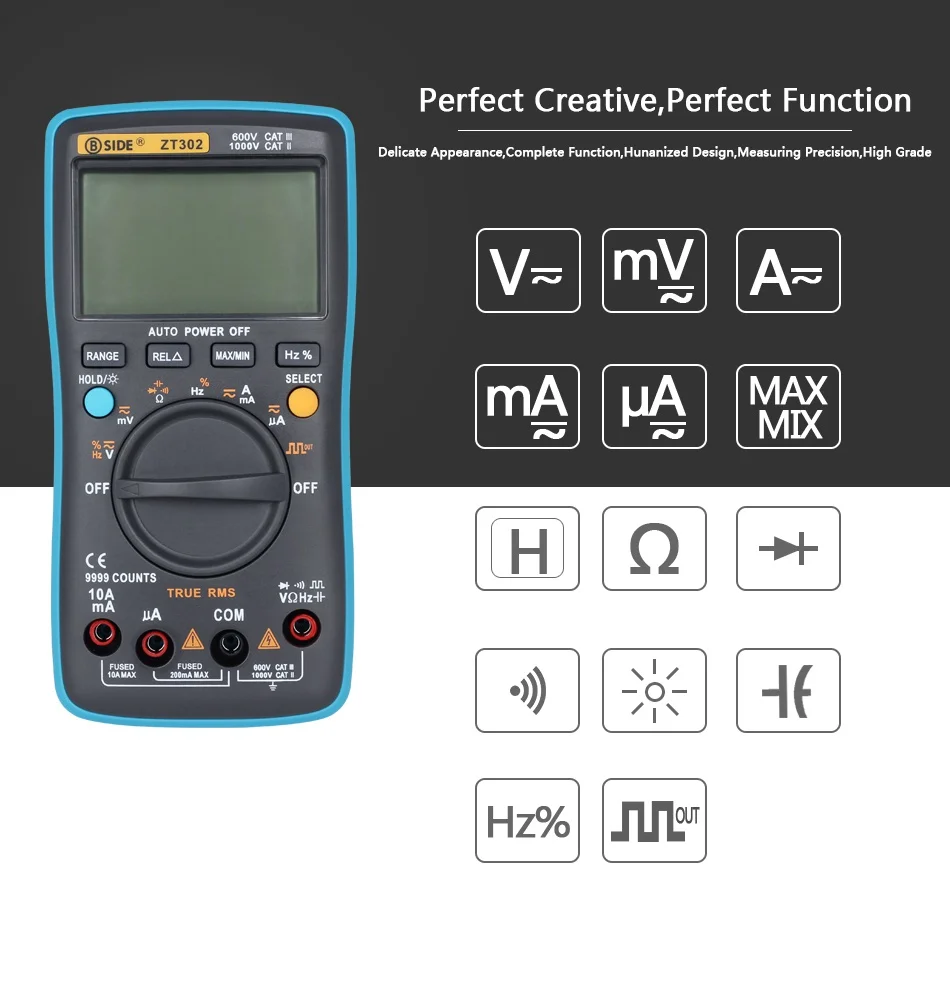

BSIDE ZT301/ZT302 Ture RMS Digital Multimeter 9999 Counts Multifunction AC/DC Voltage Temperature Capacitance Testers DMM RM109

Availability:

94 in stock


$50.00$63.74

Clear

Dear, our official store In order to thank you for your support, we will give you another $ 7 alligator clip banana plug, as shown below, can only last for some time and hope you order as soon as possible

​Product Introduction

It is a Auto-ranging digital multimeter using double-integral style A/D transform as the core,

Can be used to measures AC/DC Voltage,AC/DC Current,Resistance,Capacitance,Diode and Continuity testing,temperature,Frequency and Etc.

The products are battery powered.they are characterized by stable function and high reliability, with the features of overload protection and LCD display for clear reading,are an ideal tools for lav,factory,radio fans and family use.

General Characteristic

· LCD display

· Max display:8000 counts(ZT301)/9999 Counts(ZT302)

· Polarity identification

· Measurement mode:double-integral style A/D transform

· Sample rate:3 times per second

· Over range indication:OL

· Low voltage indication

· Working Environment:0-40 degrees,relative humidity <80%

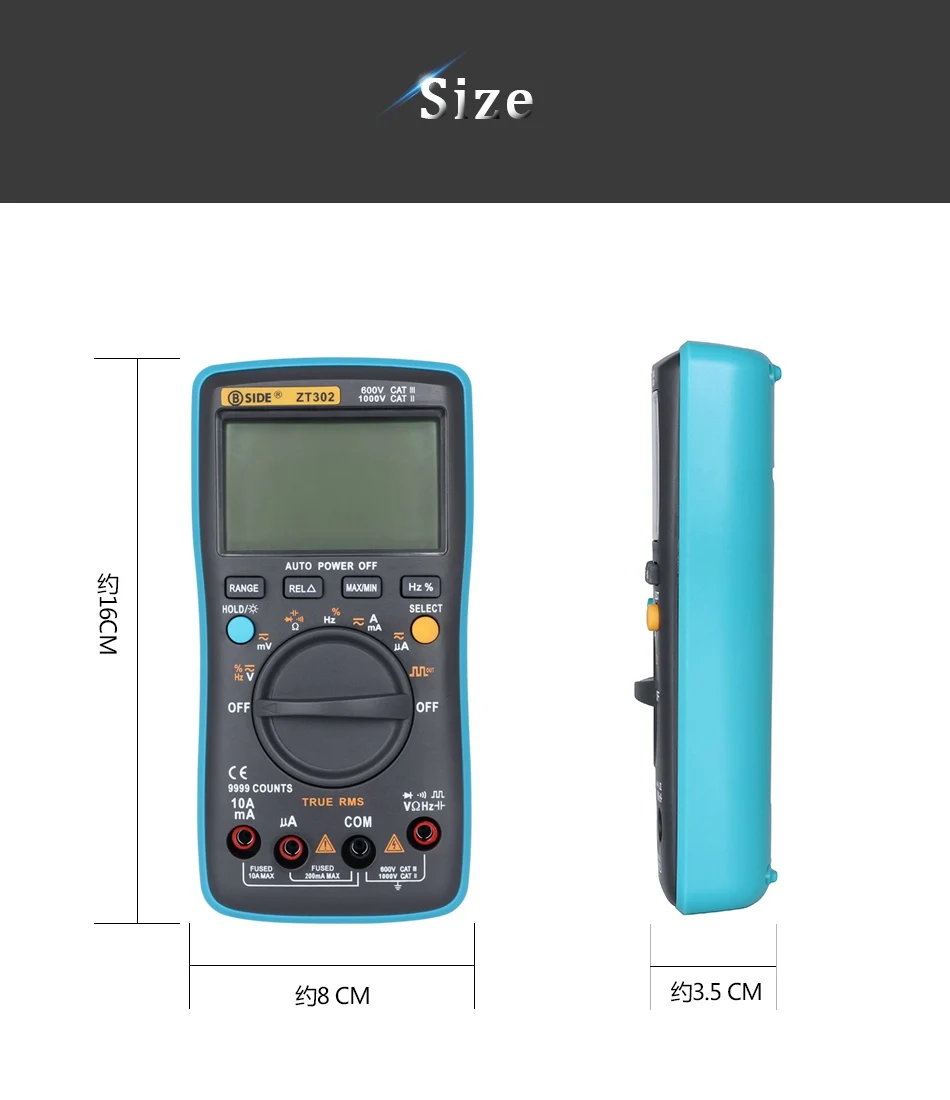

· Size:85x160x32 mm

· Auto Range

· True RMS measurement

· Backlight display

· Data retention

· Polarity automatic recognition

· Low voltage display

· 10A large current measurement, mA level small current measurement

· Automatic shutdown

· Main measurement: AC / DC voltage, AC / DC current, resistance, capacitance,

· Diode / off measurement, frequency and duty ratio measurement.

Specification parameter:

(1) Frequency: 100/1000/10K/100k/10M (±0.1% ±2)

(2) Capacitance: 10nF (±5.0%±20), 100nF/1uF/10uF/100uF/1000uF (±2.0%±5), 10MF (±5.0%±5)

(3) DC voltage: 800mV (± 1.0%±10), 8V/80V/800V/1000V (± 0.5%±3)

(4) AC voltage: 800mV (± 3.0%±3), 8V/80V/800V/750V (± 1.0%±3)

(5) DC current :800uA/8000uA (± 1.5%±3), 80mA/800mA (± 1.5%±3), 10A (± 1.5%±3)

(6) AC current :800uA/8000uA (± 1.5%±3), 80mA/800mA (± 1.5%±3), 10A (± 1.5%±3)

(7) Resistance: 800 (± 0.5%±3), 8K/80K/800K/8M (± 0.5%±2), 80M (± 1.5%±3)

(8) Temperature: < 400 ± C (1.0%±5), more than 400 DEG C ± (1.5%±15)

< 752 ± (1.0%±5), more than 752 degrees Fahrenheit (1.5%±15).

(9) share ratio: 1% to 99% (± 1%)

(8) measurement methods: double integral A/D converter

(9) ultra range display: OL

(10) working environment: 0~40 C, relative humidity < 80%
