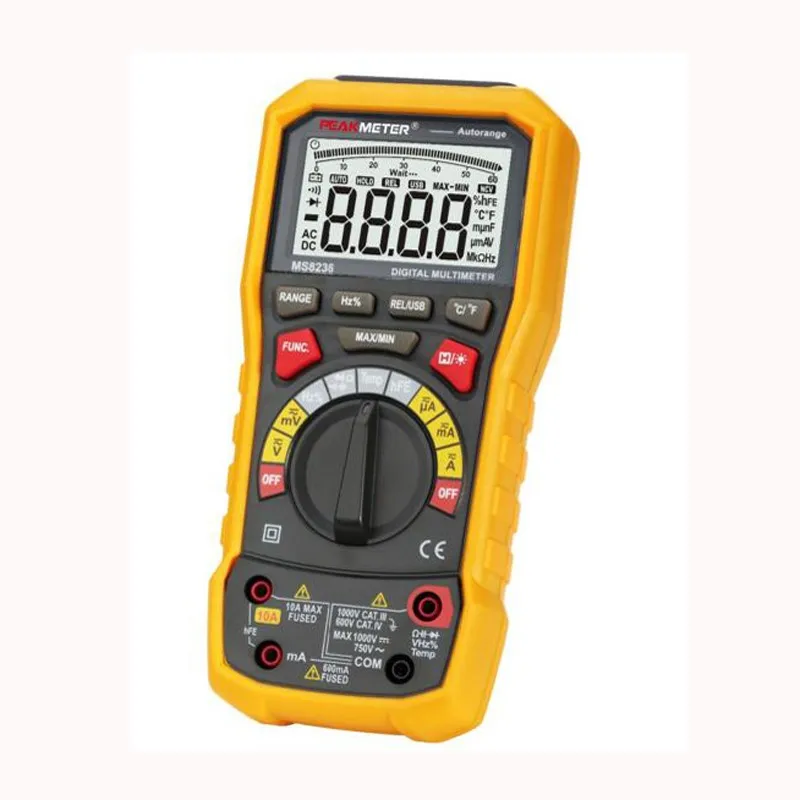

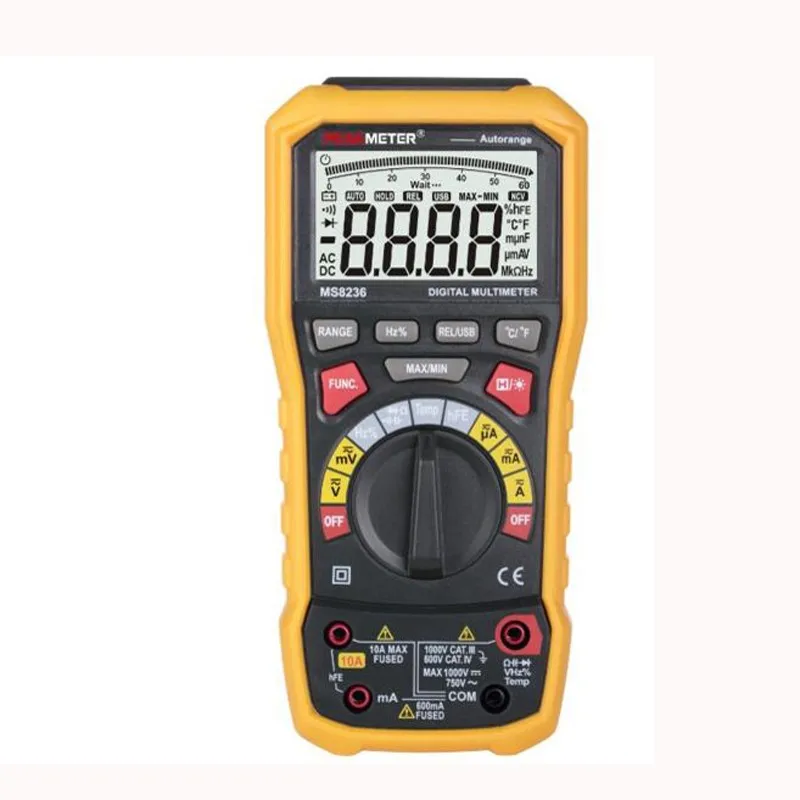

Digital Multimeter tester Auto Range multimetro Temperature Tester and Data Logger 6000 counts PEAKMETER MS8236
This instrument is a hand-held intelligent multifunctional measurement instrument, integrating noise, temperature and digital multi-meter into one. With large LCD digital display (these sets of data display) and backlight, it’s easy for user to read, with overload protection and battery under-voltage indication. Whether for professional, factories, schools, amateurs or family, it’s an ideal multi-functional instrument.
Auto range. Convenient exchange makes your measurement more accurate.
Relative value measurement function. In this mode, the instrument display value = actual value-set reference value.
USB Interface function. The measured data stored in the instrument can be uploaded to computer for display, record and analysis.
Large LCD screen with backlight can help the user see the data clearly even in the night.
Auto power-off function. If there are no operations within 15 minutes as of the instrument is turned on, the instrument will automatically enter into sleep state.
DC Voltage: 60mA / 0.01mV, 600V / 0.1mV, 6V / 1mV, 60V / 10mV, 600V / 100mV, 1000V / 1V
AC Voltage: 60mV / 0.01mV, 600mV / 0.m1V, 6V / 1mV, 60V / 10mV, 600V / 100mV, 750V / 1V
DC Current: 600mA / 0.1mA, 6000mA / 1mA, 60mA / 10mA, 600mA / 100mA, 6A / 1mA, 10A / 1mA
AC Current: 600mA / 0.1mA, 6000mA / 1mA, 60mA / 10mA, 600mA / 100mA, 6A / 1mA, 10A / 10mA
Capacitance: 10nF/0.001nF,100nF/0.01nF, 1000nF / 0.1nF, 10mF/0.001mF,100mF/0.01mF,1000mF/0.1mF,10mF/0.001mF
Frequency and Duty: 10Hz / 0.001Hz, 100Hz / 0.01Hz, 1000Hz / 0.1 Hz, 10kHz / 0.001 kHz, 100kHz / 0.01Hz, 1000kHz / 0.1Hz, 10MHz / 0.001Mhz
Temperature: -20~1000?, -4?~1832?
Temperature Measurement Range: -20?~1000?, -4?~1832?
Item Size: 19.5 * 9.5 * 6cm
Item Weight: 378g (without battery)
Power Supply: 4 * 1.5V AA Battery (not included)
Package Size: 23 * 15 * 7cm / 9.05 * 5.9 * 2.8in
Package Weight: 751g / 1.7lb
Colorful Gift Box
1 * MS8236 Digital Multimeter
1 * Pair Test Leads
1 * English Operating Manual
1 * USB Data Cable
1 * Temperature Probe
1 * Multi-Function Socket
