Hot Sale!!! 12V/24V AC 1.7m wheel diameter 5 blades 600W Wind Turbine Generator with free 600W Controller Wind Generator Kit

Availability:

998 in stock


$523.60 $616.00

12V24V
Clear

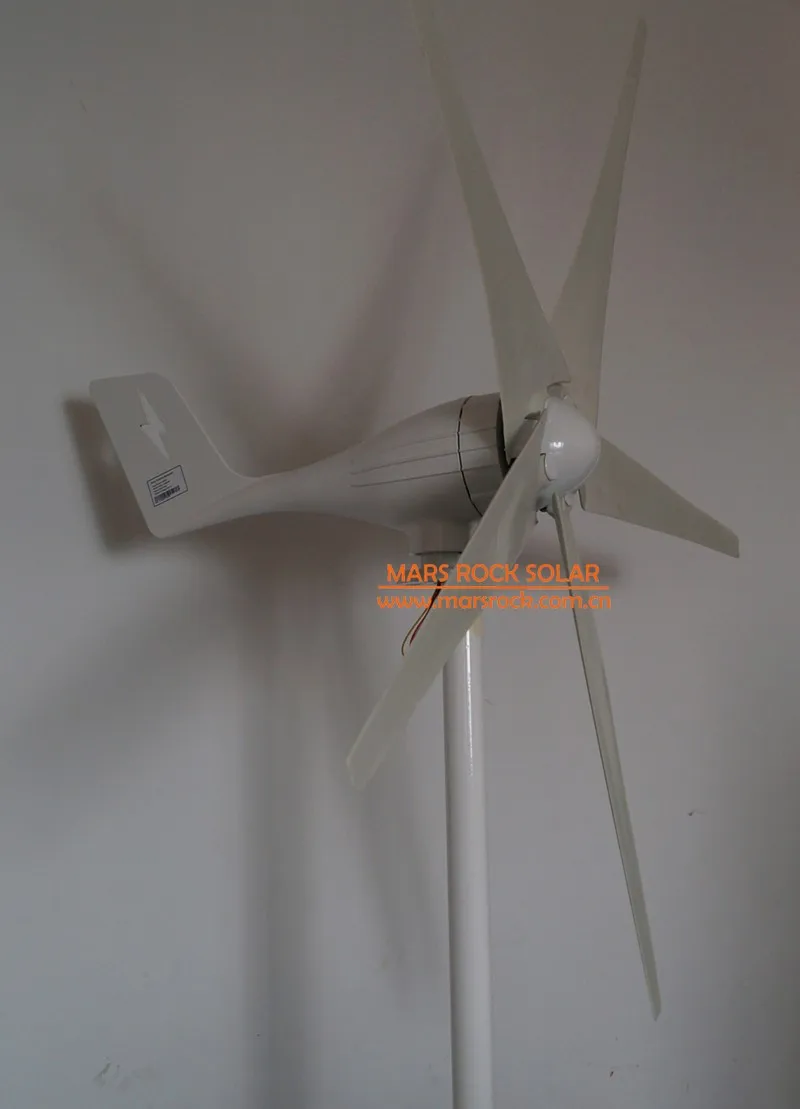

Hot Sale!!! 600W 12V/24V AC 1.7m wheel diameter 5 blades Wind Turbine Generator with free 600W Controller Wind Generator Kit

In order we can prepare the wind turbine to you in time, please tell us what voltage of the wind turbine you need when you place order. It will speed us to proceed your order.

Instruction

Wind turbine generator can transfer wind power to electrity. Wind is an important renewable resources. To meet most of customers’ requirements, we promote an economy wind turbine generator which is cheap and good quality. Considering the generator can start easily, our engineers develop the lower start-up wind speed. Start the wind turbine generator only needs 2m/s wind speed. 20-year long life-span wind power generator is deserved you to own it.

Product Features

1. 2m/s low wind speed starts the wind turbine generator.

This is the most obvious advange of this wind generator in all of same level product on the market which make high wind energy utilization rate.

2. Three phase AC output

Three phase output can make wind turbine transfer more wind power to electricity. 12V or 24V AC for customers’ choise for their system.

3. Low fault and strong ability to resist the Typhoon

Fan adopts the unique design of the fuselage shock smooth operation, no noise, the blades with nylon composite materials manufacturing and become, with the optimization of aerodynamic design and structural design, start wind speed is low, high wind energy utilization coefficient, increase the power generating capacity. Stern rudder adopts the design of automatic yaw, stronger ability to resist the typhoon, safe and reliable operation.

4. Horizontal shaft function.

The wind turbine generator can adjust the angle automatically according to the wind directions by the horizontal shaft design.

5. 20-year long service life.

Due to the motor internal labyrinth design, external all fasteners are high strength stainless steel products, so it has better protection effect, can waterproof (IP65), prevent sand more effectively.

6. Structure is simple and reliable, beautiful appearance, strong mobility.

7. easy installation

Datasheet

Model

ZL1.4S-400

ZL1.5S-500

ZL1.7S-600

5ZL1.7S-800

Rated Power

400W @ 7m/s

500W @ 7m/s

600W @ 8m/s

800W @ 8m/s

Max. Power

600W

700W

800W

1000W

System Voltage

12V or 24V

12V or 24V

12V or 24V

12V or 24V

Cut-in Wind Speed

2m/s

2m/s

2m/s

2m/s

Cut-out Wind Speed

13m/s

13m/s

15m/s

15m/s

Security Wind Speed

45m/s

45m/s

45m/s

45m/s

Calculated Annual Output

1150KWH @ above 5m/s

1150KWH @ above 5m/s

1820KWH @ above 5m/s

1820KWH @ above 5m/s

Wheel Diammeter

1.4m

1.5m

1.7m

1.7m

Rotor Speed

300rpm/min

300rpm/min

400rpm/min

400rpm/min

QTY of Blades

3PCS or 5PCS

3PCS or 5PCS

3PCS or 5PCS

5PCS

Blades Material

Carbon Fiber

Carbon Fiber

Carbon Fiber

Carbon Fiber

Insulation

Class F

Class F

Class F

Class F

Generator Type

3 phase/PMG

3 phase/PMG

3 phase/PMG

3 phase/PMG

Wind Controller

12V/24V auto

12V/24V auto

12V/24V auto

###

Waterproof

IP67

IP67

IP67

###

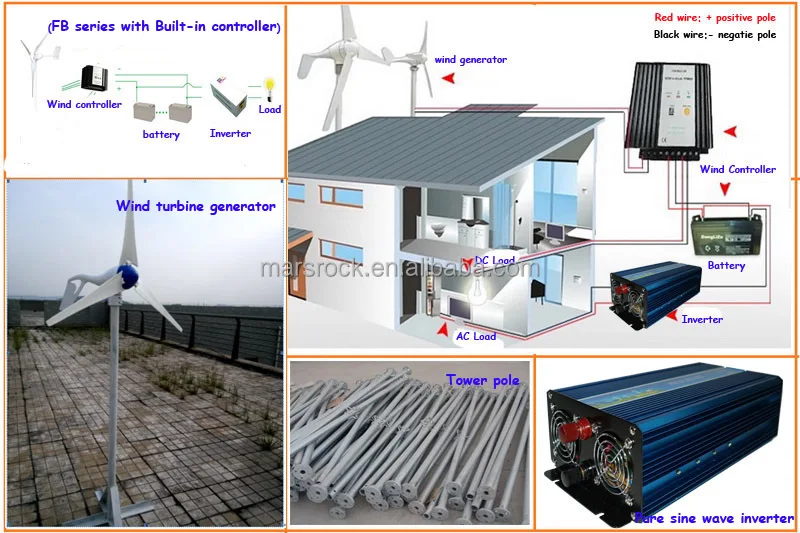

Connection Diagrames

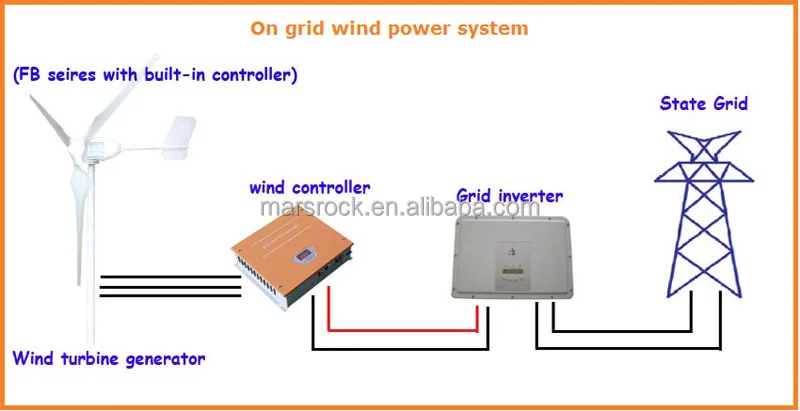

1. Grid Tie Wind Power System

2. Off Grid Wind Power System

3. Off Grid Wind Solar Hybrid Controller

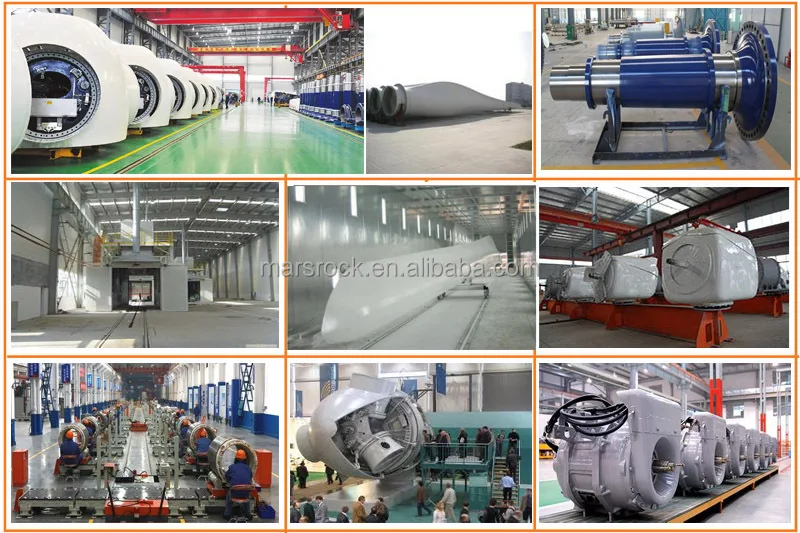

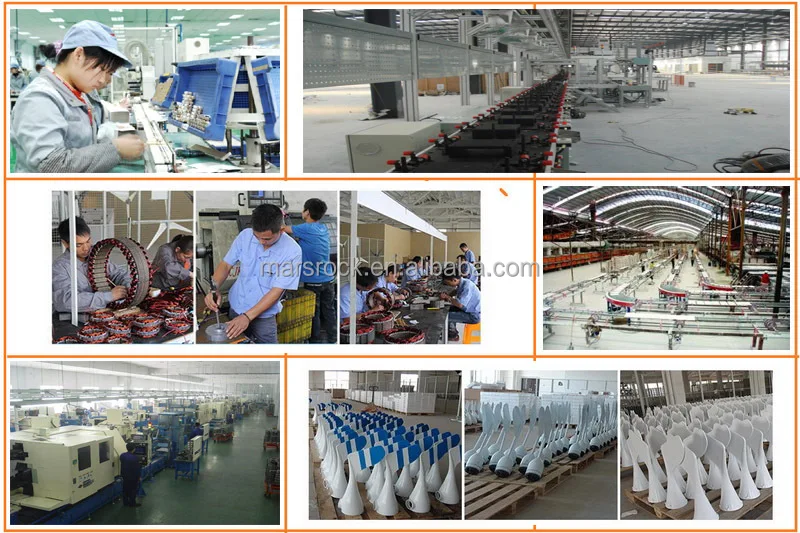

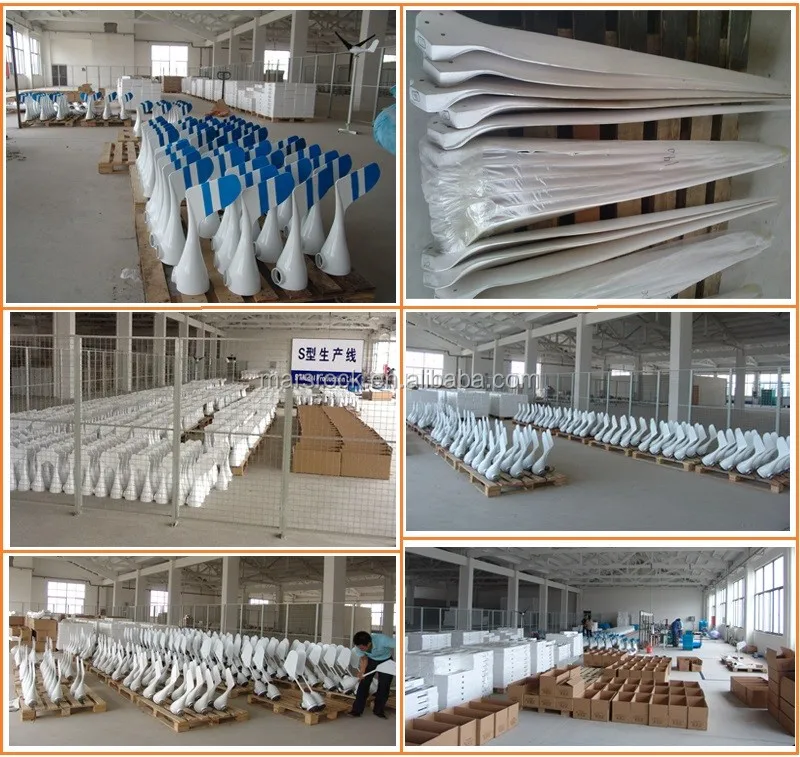

Production Line

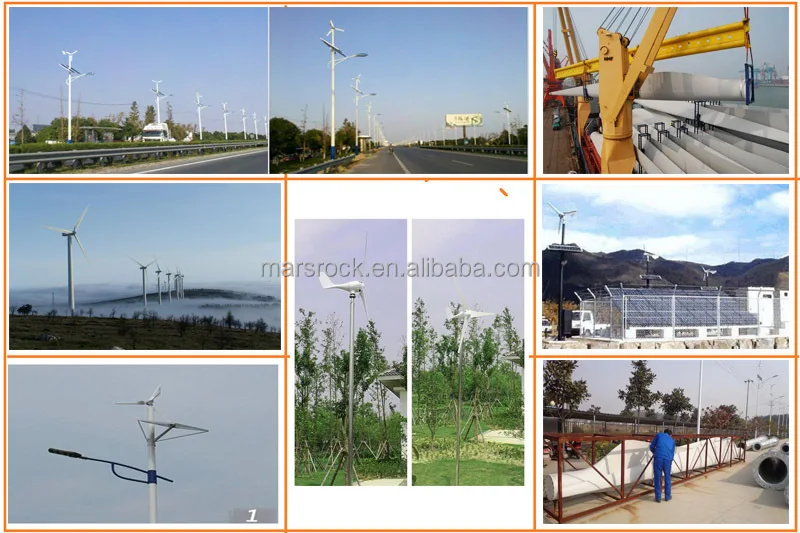

Application Projects

Shipments

Our Service

1. After customers place the order to our store and finish payment, we will prepare the parcel around 7 days before shipping. We will pre-pay the freight cost at our side but we don’t responsible any customs tax or import tax (We can declare lower value on the invoice to your clearance customs if you informed us before shipping.).

2. We will give positive feedbacks to our customers when we receive the payment released by Aliexpress system. So hope you also can leave positive feedbacks to our service. If you are not satified with our products or service, you also can contact with us directly. We are welcome you to give our your precious suggestions.

3. All message and emails will be answered within 1 business day. If you do not receive our reply please kindly re-sent your message or emails and we will reply to you as soon as possible.

4. Before placing your order, please leave the key parameters to us so that we can prepare the products to you ASAP to short the delivery time.

FAQ

1. What kind of region can be installed wind turbine?

Small wind turbines should be applied in the regions which wind resources is sufficient. The annual average wind speed should be more than 3m/s, the effective wind speed 3-20m/s should be more than 3000h in accumulation per year. The density of 3-20m/s effectively average wind power should be more than 100W/m2.

It should be noted that choosing the rated design speed wind turbine is in conformity with local design speed. It is significantly in making use of wind resources and in economic aspect. Wind tunnel test proves that the fan power transformation of the impeller in the direct ratio with wind speed, that is to say, the wind speed decide the output electrical power.

2. How to calculate the actual need power in my home to configure the appropriate power of wind turbines?

At present, battery stores the power from the wind turbine, then discharge to home appliances. So the power which discharged to the load and be charged timely by wind turbine is the amount of the actual needs power.

Take an example: the rated output power from wind turbine generator is 100W per hour, the continuous workable hours by wind is 4 hours. The battery can be charged total capacity is 400WH. For only about 70% power from battery can be discharged to the load, so the actual power which can be used from battery is 280WH.

If there are:

1) Bulb15W x 2 Pieces, working 4 hours one day, consumption 120WH

2) TV 35W x 1 set, working 3 hours one day, consumption 105WH

3) Radio 15W x 1 Piece, working 4 hours one day, consumption 60WH

Above total consumption is 285WH per day. If you only design to install 100W wind turbine generator, the consumption total power will more than the power from wind turbine generator. In long period of time using power from 100W wind turbine generator, it will make the battery serious loss of electricity and damaged, and it will cut down your battery service life.

It is assumed that wind turbine at rated wind power generation and energy consumption, but in fact, due to the variability of the wind, intermittent, there are strong and weak wind different (wind speed) and wind blow in long time and short time different(frequency). So you should cut down even cut off some electrical application working time when the wind condition is in poor to protect your battery. If your budget is enough, it will be better to install a diesel generator set or install solar panels at the same time.

3. How to select the correct battery capacity to get power from wind turbine generator?

Generally, the battery capacity should be equal or smaller than the power from wind turbine generator.

1) 100W wind turbine generator matches 120AH battery (60AH x 2 Pieces)

2) 200W wind turbine generator matches 120-180AH battery (60 OR 90AH x 2 Pieces)

3) 300W wind turbine generator matches 240AH battery (120AH x 2 Pieces)

4) 750W wind turbine generator matches 240AH battery (120AH x 2 Pieces)

5)1000W wind turbine generator matches 360AH battery (60AH x 3 Pieces)
