Sale!

Mastech Ms8268 Digital Multimeter Auto Range For Ac/dc Ammeter Voltmeter Ohm Frequency Electrical Tester Detector

Availability:

99 in stock

£48.00 £60.00

99 in stock

MASTECH MS8268 Digital Multimeter Auto Range protection ac/dc ammeter voltmeter ohm Frequency electrical tester diode detector

Please Note:This product send without battery and retail box. Features:

Display: 3 3/4 digital large LCD with 4000 counts

Manual & Auto ranges

Data hold

Backlight

Full overload protection

Built-resetable fuse protection

Fuse Protection: mA and mA file: resettable fuse; 10A file: F 10A/250V 6.332mm

Misconnection alarm system

Red lights to show the correct terminals

Audible warning for over-range

“Sleep mode”, auto power off & low battery indication

Unit symbol display

Continuity test

Diode test

Duty Cycle Measurement

Relative value measurement

Specifications:

DC voltage: 400m/4V/40V/400V ± 0.7%, 1000V ± 0.8%

AC voltage: 400mV ± 3.0%, 4V/40V/400V ± 0.8%, 750V ± 1.0%

Resistance: 400/4k/40k/400k/4MΩ ± 1.0%, 40MΩ ± 2.0%

DC current: 400μA/4000μA/40mA/400mA ± 1.5%,10A ± 2.0%

AC current: 400μA/4000μA/40mA/400mA ± 1.5%,10A ± 3.0%

Capacitance: 20n/200n/2μ/20μF ± 4.0%

Frequency: 10/100/1000/10k/200kHz ± 2.0%

Transistor hFE: 1 ~ 1000

Sampling Rate: approx. 3 times / second

Test Leads: 1KV 10A

Safety Standards: IEC1010-1, CAT. III 600V & CAT. II 1000V

Operating Temperature: 0 ~ 40° C (32 ~ 104° F)

Operating Humidity: below 80% RH, <10° C non-condensing

Storage Temperature: -10 ~ 60° C (14~ 140° F)

Storage Humidity: below 80% RH

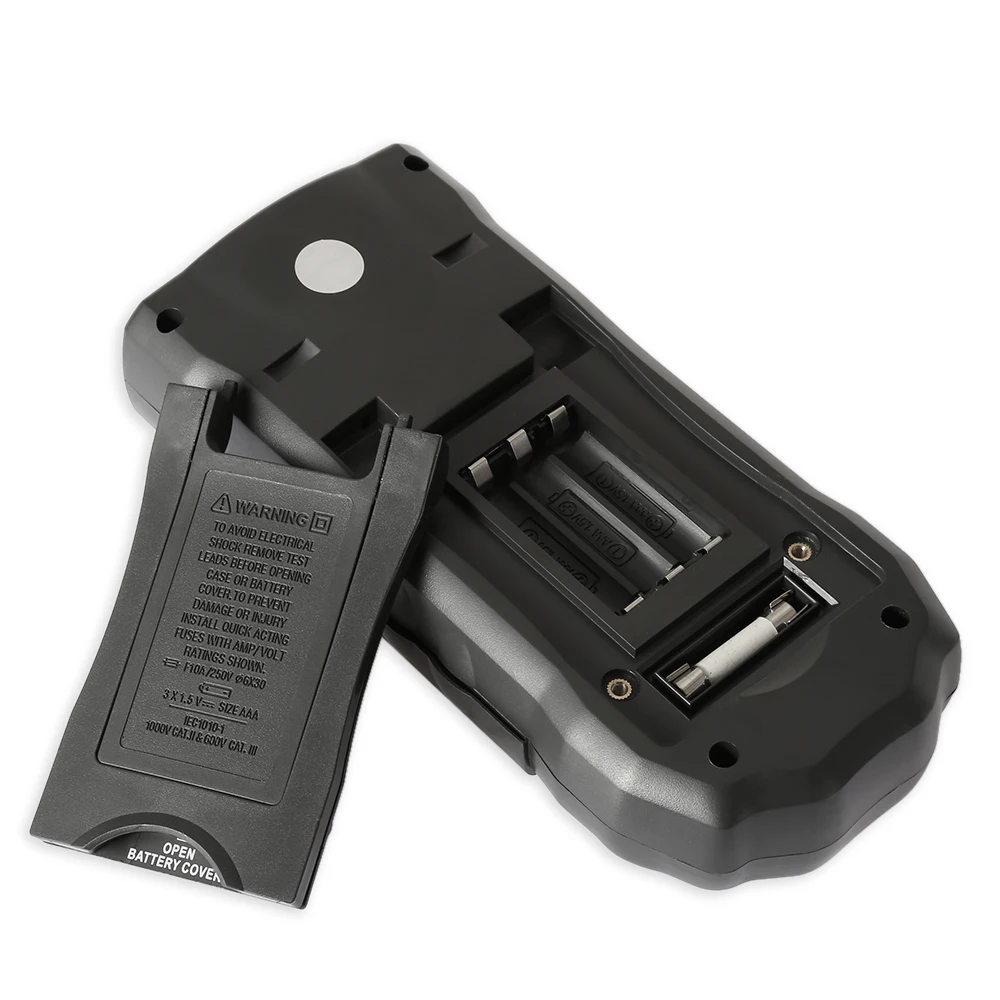

Power: 3 x 1.5V AAA batteries

Dimensions: 195 mm x 92 mm x 55mm (7.68′ X 3.62′ X 2.17′ inch)

Weight: Approx.380g (13.40oz)

Package Content:

1 * MS8268 Digital multimeter

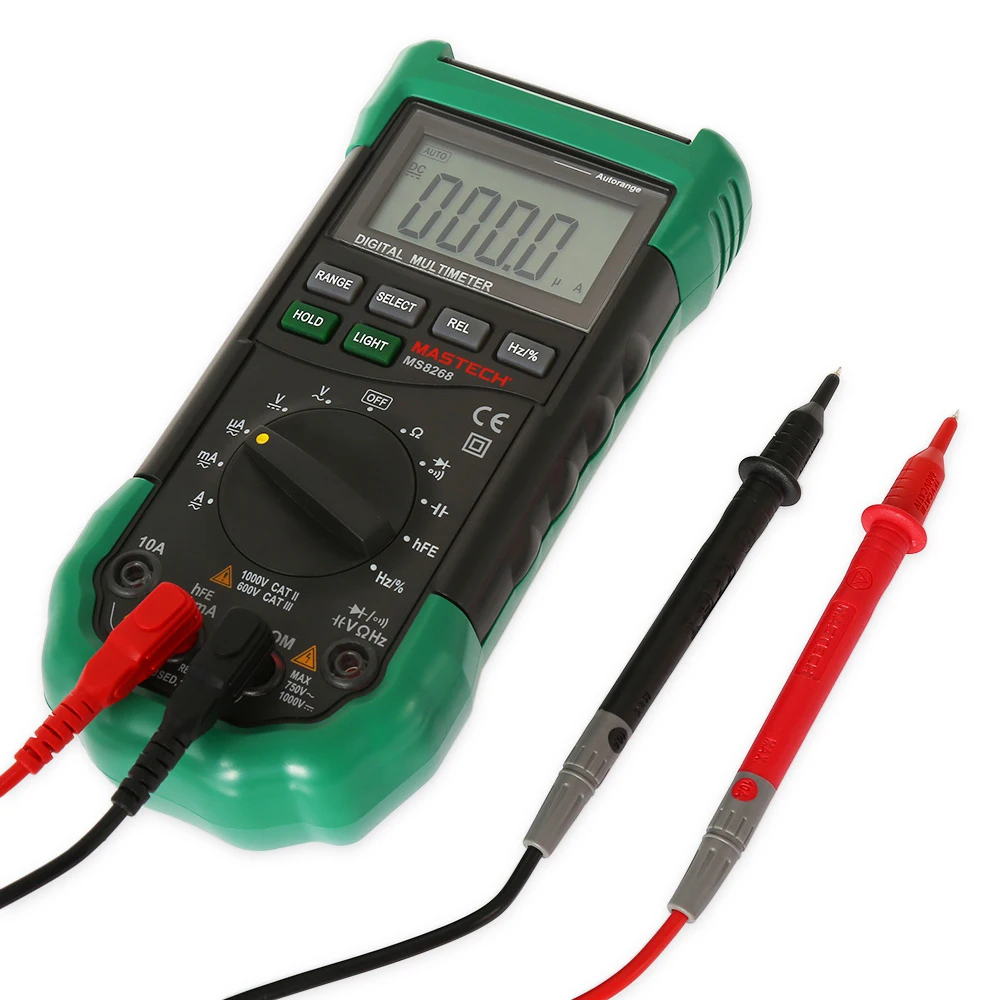

1 * Test Leads
1 * English Manual
