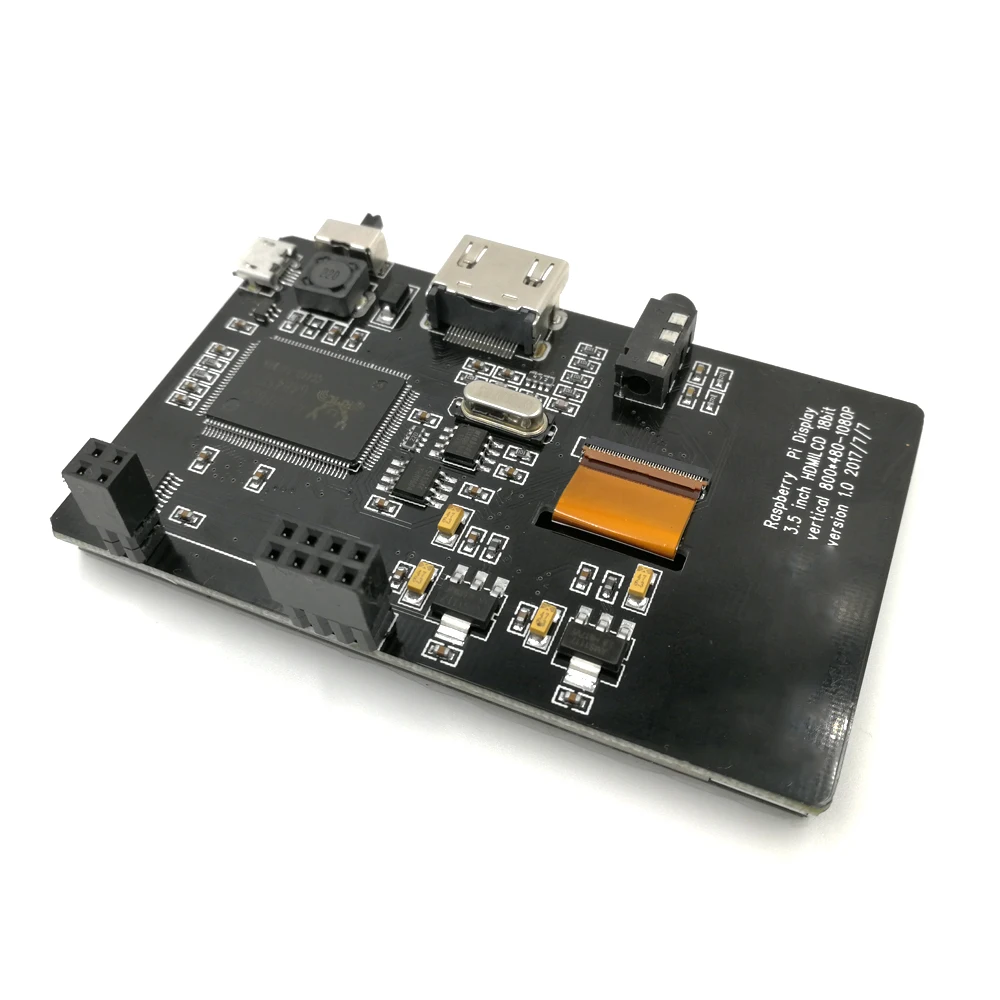

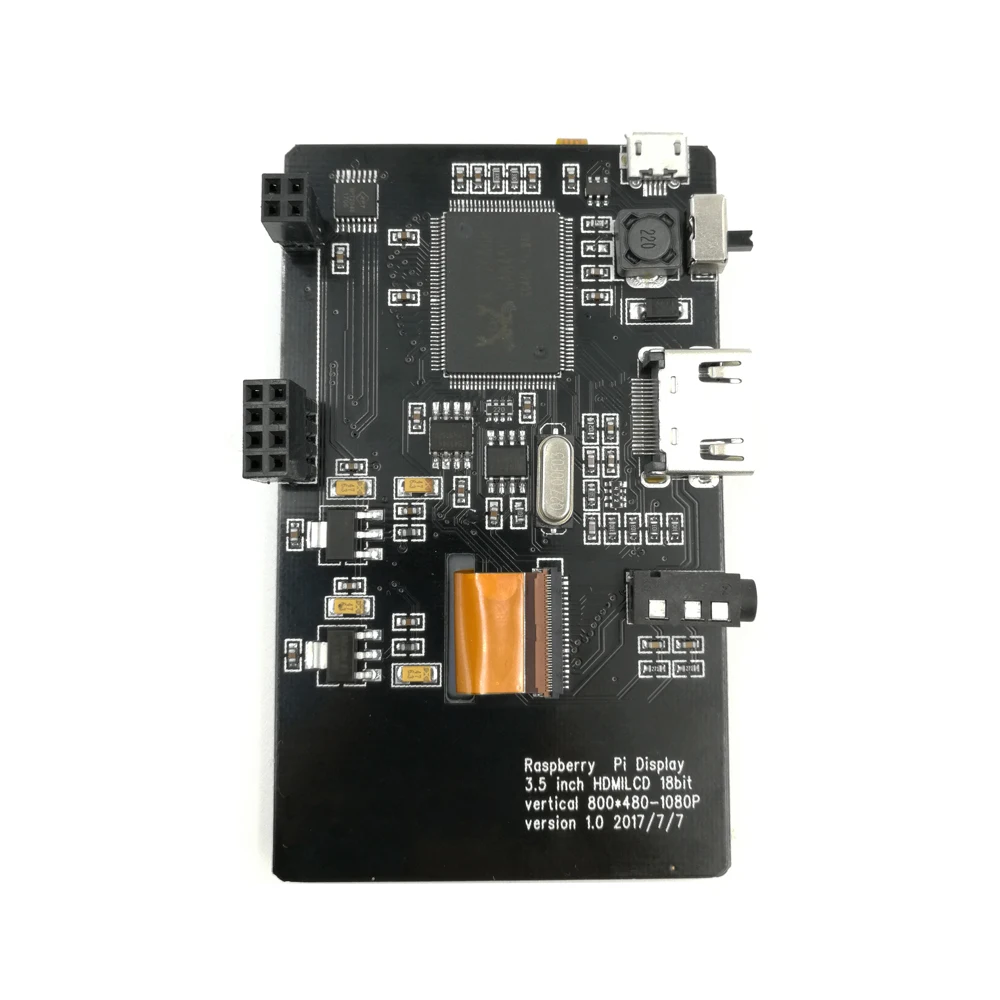

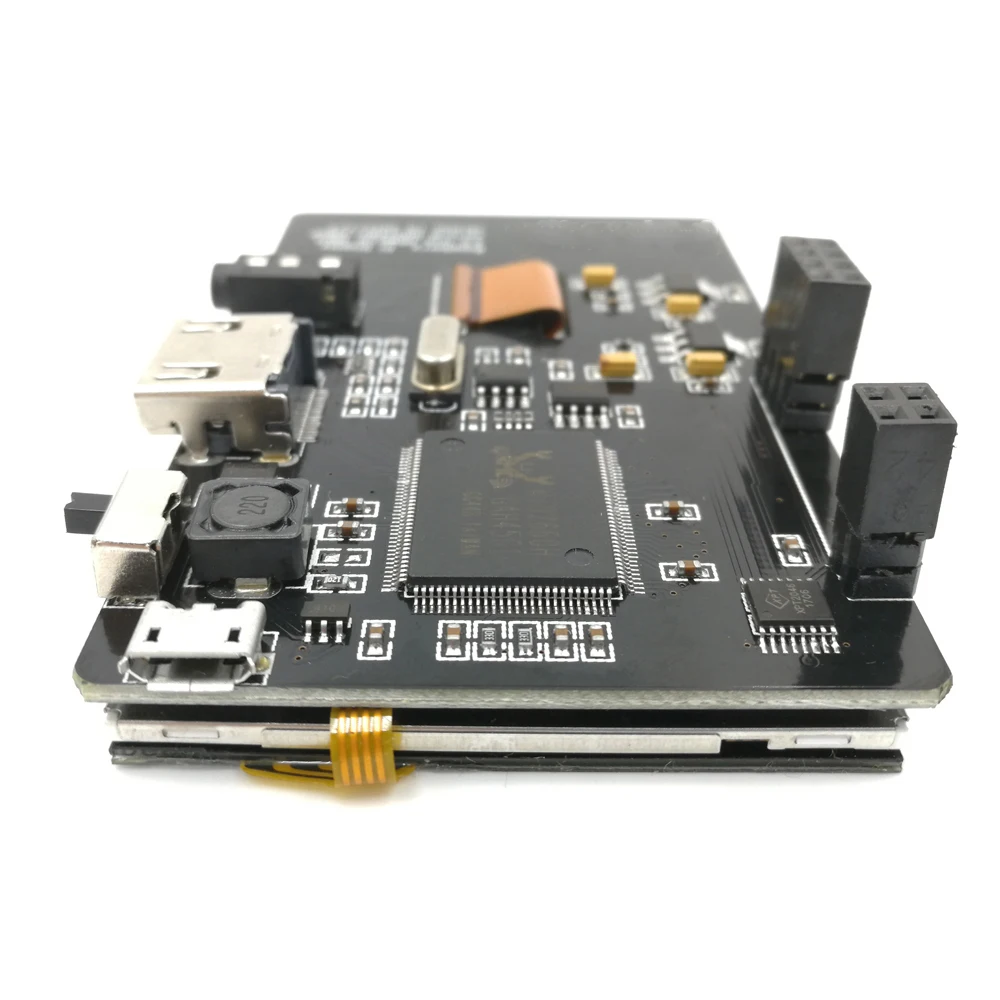

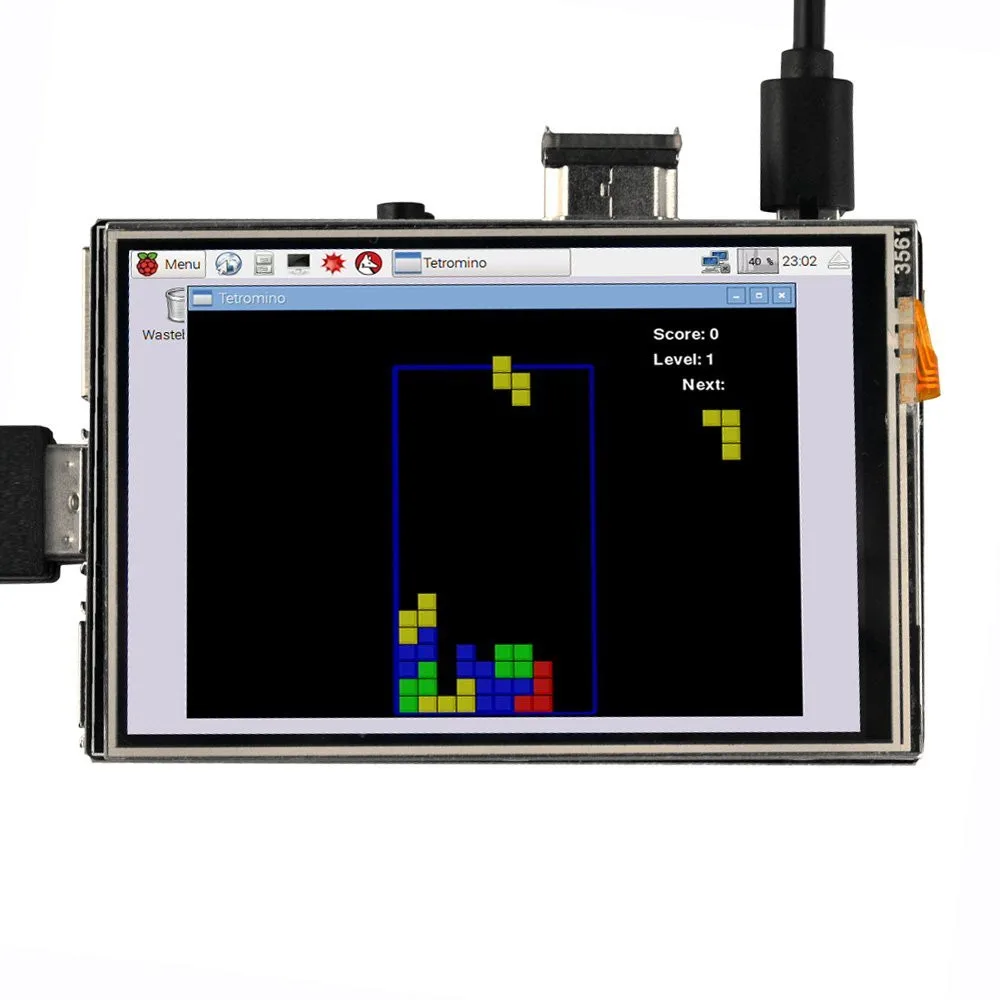

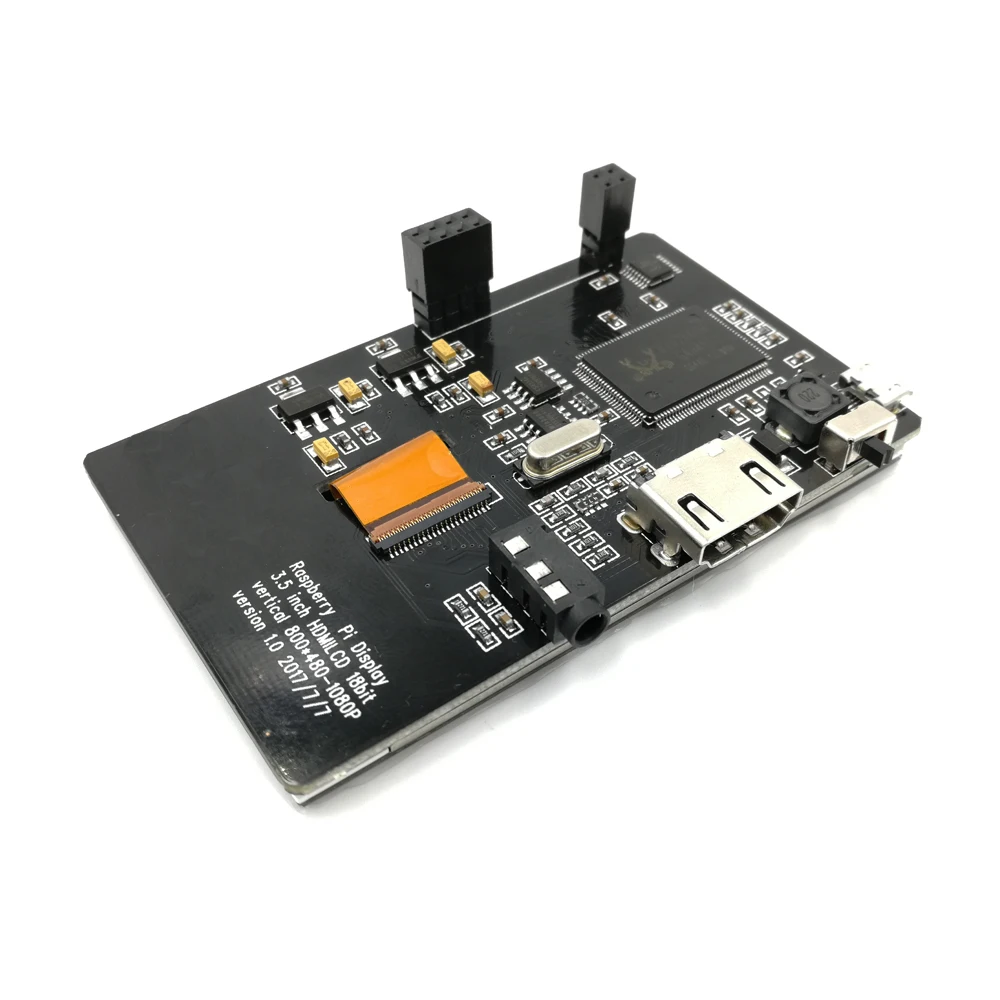

NEW 3.5 inch LCD HDMI USB Touch Screen 800*480 LCD Display Audio for Raspberry Pi 3 Model B / Orange Pi (Play Game Video)

Availability:

88 in stock

£57.58 £71.98

88 in stock

3.5 Inch LCD HDMI Touch Screen Monitor Display TFT LCD Module 1920×1080 for Raspberry Pi 3 Kit Great news: 3.5 inch HDMI interface, ultra clear screen, IPS, 480*800, physical resolution officially sold, video refresh to 60 frames per second!

Product features:

  • With the HDMI interface, refresh reaches 60 frames per second;
  • Physical resolution 480*800, ultra clear display;
  • Support raspberry pie system, raspberry, Kali, Ubuntu, piplay, retropei systems
  • Pin base of humanity, freeing up the unused IO port;
  • Using the new version of the UI interface, the new UI;
  • Using the new kernel, 4.9.17, the new kernel;
  • Support plug and play (motherboard running time, plug in display at any time can be normal display), support touch control;
  • Support driver, automatic installation.

Mirror the official website: http://en.kedei.net

A. Use the compiled file inside the network disk directly burn to sd card.

B. Use the disk drive.

1. The network connection is normal

2. Connect the LCD panel to the Raspberry development board

3. Copy the disk drive to the raspberry pie (using ssh or using u disk media mount)

4. Unzip the file and start the installation.

Unzip the file tar -xzvf LCD_show_35hdmi.tar.gz

Jump into the folder cd LCD_show_35hdmi

First update the system update sudo apt-get update

Backup data (optional) sudo ./LCD_backup

Install the driver sudo ./LCD35_v

Wait a while and the system will install the driver and automatically restart

If you want to re-use the system before the installation, you can use sudo. / LCD_restore

Note: When you update the system to use, you must use this command sudo apt-mark hold raspberrypi-kernel (locked kernel and driver is not changed).
Then use the following command,
Sudo apt-get update
Sudo apt-get upgrade

Otherwise it may restart after the failure

C. To the network to download their own patch, the kernel version 4.4.19, add their own application protocol or the underlying upper-level kernel driver,enjoy yourself

Pin Definitions:
1 —-> 3v
2 —-> 5v
3 —-> NC
4 —-> 5V
19 —-> MOSI
20 —-> GND
21 —-> MISO
22 —-> TP_IRQ
23 —-> SCLK
24 —-> TP_CS
25 —-> GND
26 —-> NC

Others are NC!
Package include:
1 x New 3.5” USB Touch Screen HDMI LCD Display Audio for Raspberry Pi 3
1 x Touch Pen
1 x HDMI Connector

========================================================================================================================================================================================================================================================================
