Peakmeter 890C 890D Digital Multimeter NCV Voltage Current Resistance Tester Capacitance Frequency Temperature hFE measure tool

Availability:

500 in stock

£35.86£38.36

Clear

Peakmeter PM890C PM890D Digital Multimeter True RMS 6000 Counts Temperature DC/AC Current Voltage Resistance Intelligent Electric tool

Parameters:

Different Features Between PM890C/890D/PM18/PM18C:

Feature

PM890D

PM890C

PM18

PM18C

Capacitance

60000 uF

60000 uF

100000 uF

100000 uF

Temperature

NO

YES

NO

YES

Flash light

NO

NO

YES

YES

Specification

Range

Accuracy

PM890C

PM890D

DC Voltage

600mV/6V/60V/600V/1000V

+/-(5.0%+3)

+/-(5.0%+3)

AC Voltage

6V/60V/600V/1000V

+/-(0.8%+3)

+/-(0.8%+3)

DC Current

6uA/6mA/60mA/600mA

+/-(0.8%+3)

+/-(0.8%+3)

20A

+/-(1.2%+3)

+/-(1.2%+3)

AC Current

6mA/60mA/600mA

+/-(1.0%+3)

+/-(1.0%+3)

20A

+/-(1.5%+3)

+/-(1.5%+3)

Resistance

600Ohm/6kOhm/60kOhm/600kOhm/6MOhm

+/-(0.8%+3)

+/-(0.8%+3)

60MOhm

+/-(1.2%+3)

+/-(1.2%+3)

Capacitance

6nF/60nF/600nF/6uF/60uF/600uF/6mF

+/-(4.0%+3)

+/-(4.0%+3)

60mF

+/-(5.0%+3)

+/-(5.0%+3)

Frequency

60Hz/600Hz/6kHz/60kHz/600kHz/6Mhz/10MHz

+/-(1.0%+3)

+/-(1.0%+3)

Duty Cycle

5%~95%

+/-(2.0%+3)

+/-(2.0%+3)

Temperature

-20~1000℃/-4~1832°F

+/-(1.0%+3)

No

hFE

0~1000

+/-(1.0%+3)

+/-(1.0%+3)

Feature

PM890C

PM890D

Display

6000Counts

6000Counts

True RMS

Yes

Yes

ACV(bandwidth)

1kHz

1kHz

℃/°F

Yes

No

Frequency

10MHz

10MHz

Resistance

60MOhm

60MOhm

Capacitance

60mF

60mF

Continuity

High/Medium/Low (LED signal indication)

High/Medium/Low (LED signal indication)

Diode Test

Yes

Yes

hFE

Yes

yes

Live Line

High/Medium/Low (LED signal indication)

High/Medium/Low (LED signal indication)

Low Baterry Indication

Yes

Yes

Auto Power off

yes

yes

Package include:

1*Peakmeter PM890C multimeter

1*K-type thermocouple (PM890C)

1*pair of probes

1*portable bag

1*English user-manual

Note:This products didn’t contain the Batteries because of the AirPlane Limits.

Hope you can understand!Thanks!

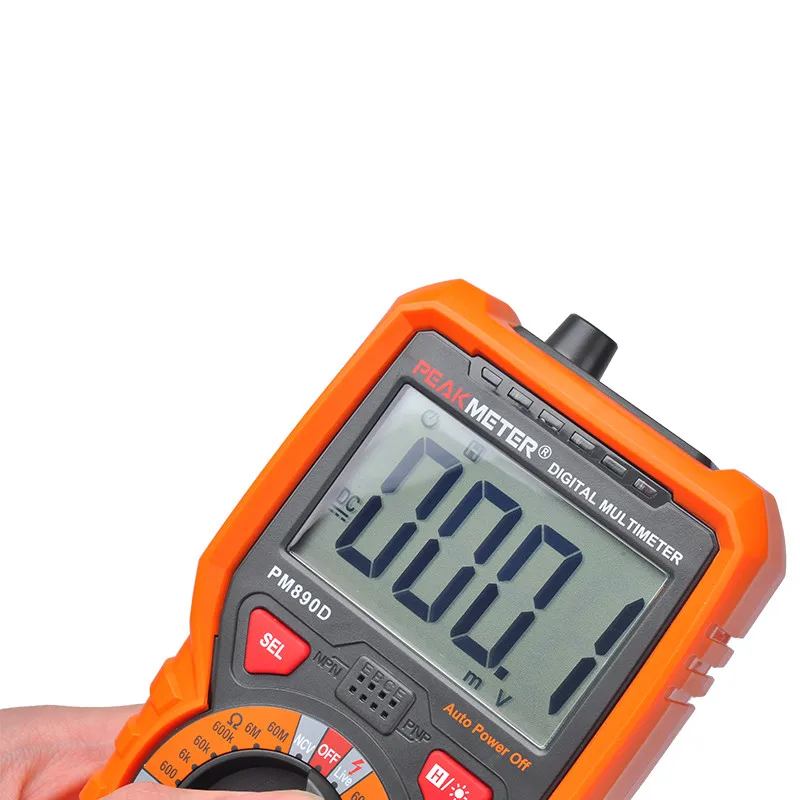

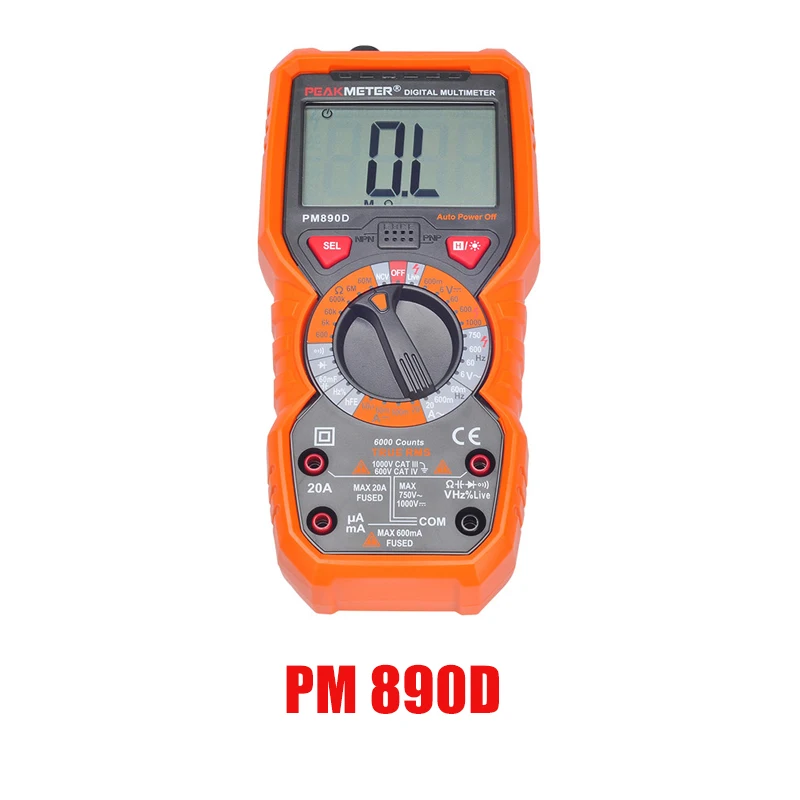

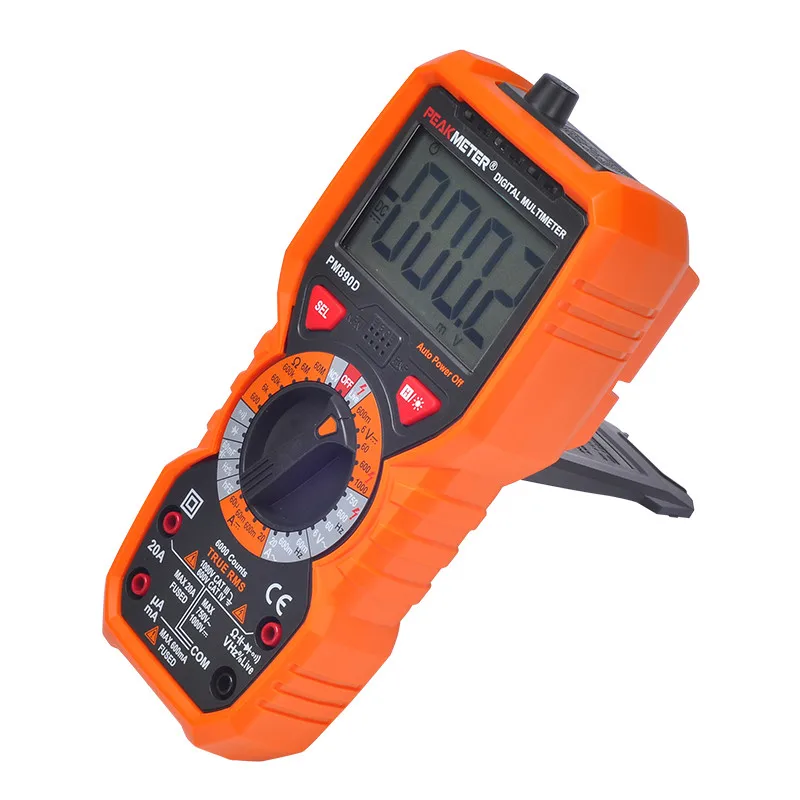

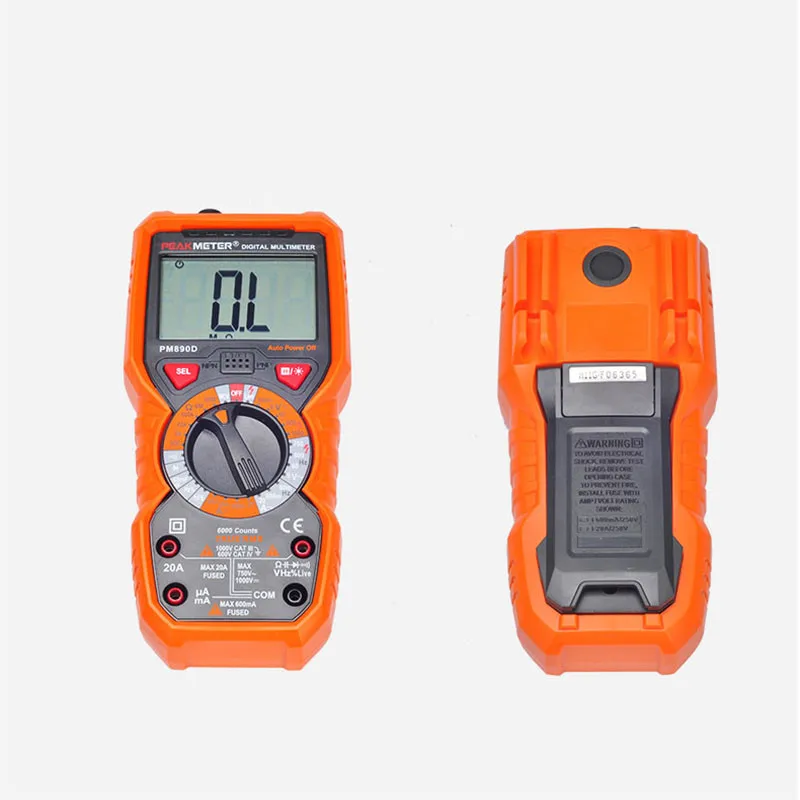

Product show
