Raspberry Pi 3 Orange Pi Tablet PC 10 Inch Full HD (1920 x 1080) TFT LCD Independent Display Screen +LVDS HDMI Drive Board

Availability:

30 in stock

£143.98 £159.98

30 in stock

[Packing List]

  • 1 x 10 Inch Full HD Screen
  • 1 x Drive Board
  • 1 x Keyboard Board

[Overview]

This Model LR10FHD01 Full-HD Display is a color active matrix TFT (Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as switching devices. This model is composed of a TFT LCD panel, a driver circuit and a backlight unit. The resolution of a 10 inch contains 1920 x 1080 pixels and can display up to 16,777,216 color with wide viewing angle.

You can use it as independent display.

[Features]

  • High contrast ratio, Ultra wide viewing angle
  • Physical resolution: FHD(1920 x 1080 pixels ) , 208PPI resolution, 16,777,216 colors
  • Low power consumption
  • ​With OBD menu, support multi languge menu.
  • Fast Response
  • LED Back Light with Internal LED Driver
  • Temperature sensor is implemented
  • Digitizer is implemented
  • DE (Data enable) only mode
  • LVDS Interface 2CH
  • Green product (BFR/CFR/PVC Free)
  • Signal input: HDMI input or VGA & Audio Input(VGA only support Image signal)

[Power Supply]

Input working voltage / current: DC 12V 2A; (12V – 15V is OK), Max.2A, dc plug: 5.5/2.5 mm

[Applications]

  • Raspberry Pi 3 Model B 2B B+
  • Orange Pi PC PC2 PC One
  • Beaglebone Black
  • Desktop Computer
  • Tablet PC

[Specification]

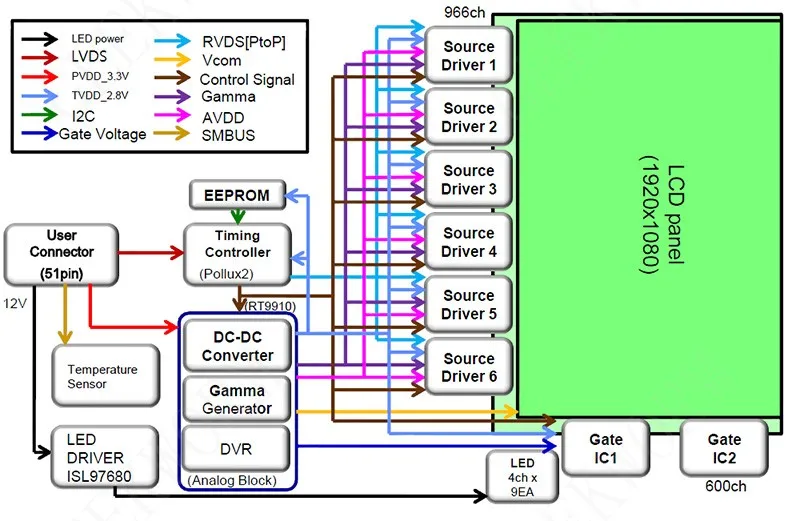

Block Diagram:

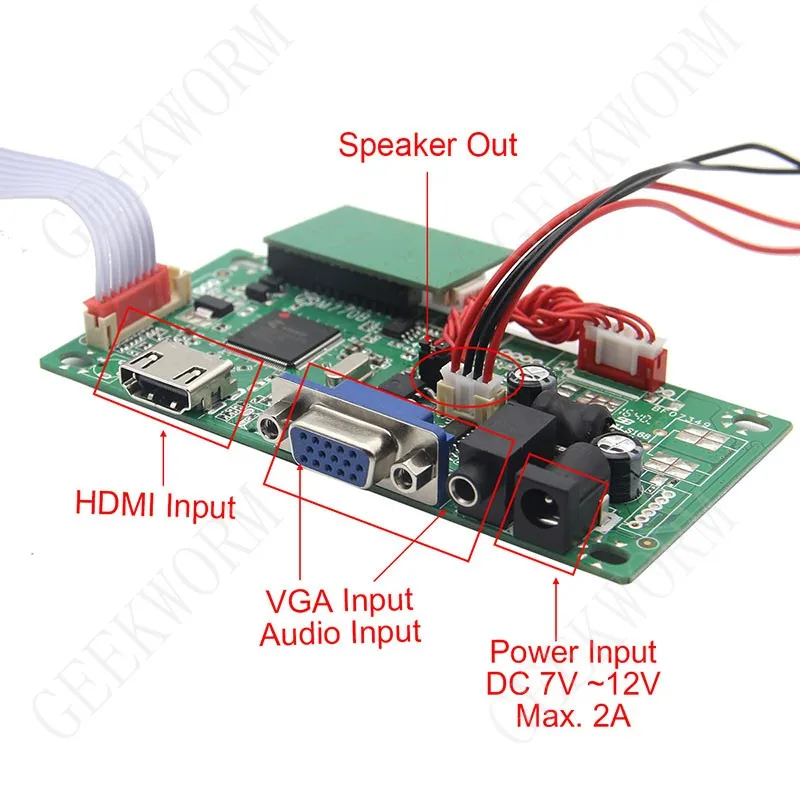

Output & Input:

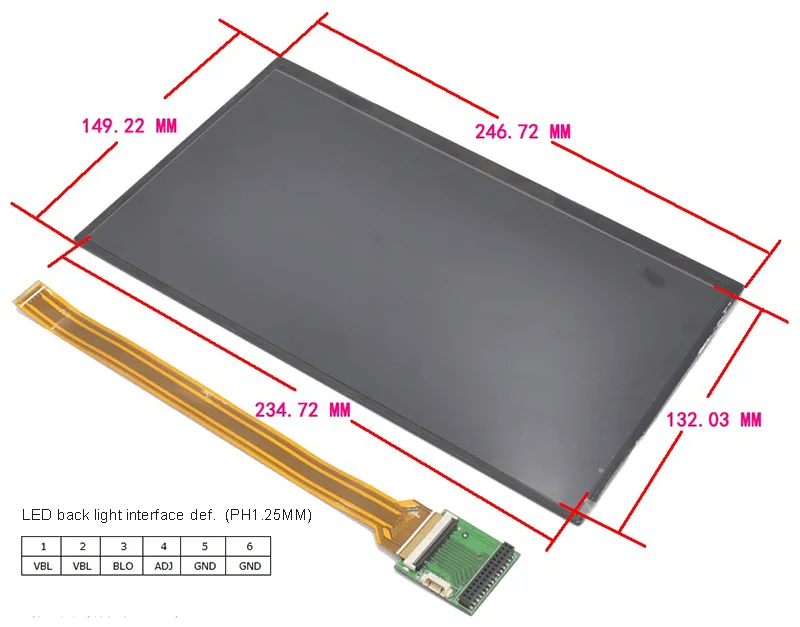

[Size]

[Product show]

More details please refer to wiki:
