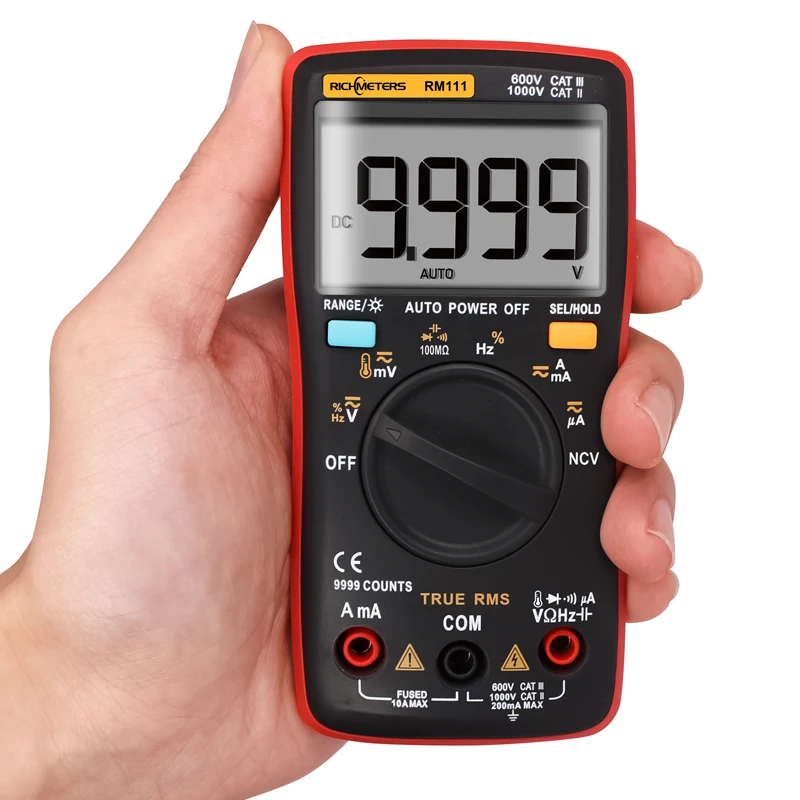

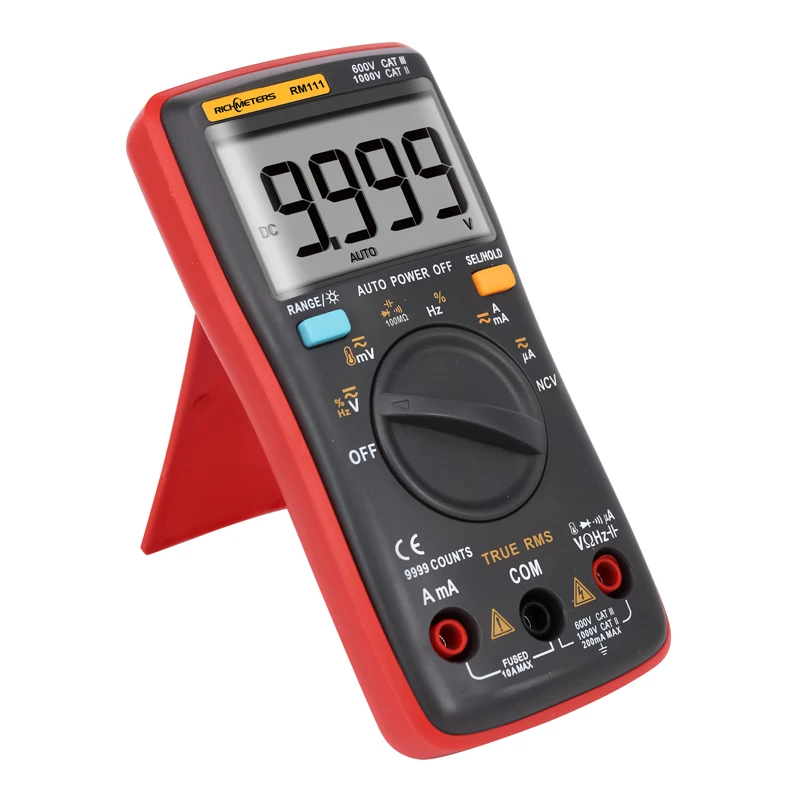

RM111 NCV True-RMS Digital Multimeter Auto Range 9999 counts 100M Ohm Temperature Back light AC/DC Voltage Ammeter Current Meter

Availability:

94 in stock

£56.00 £93.32

China
RM111(TEMP)
Clear

RM111 is one of the first 9999 count, auto-range digital multimeter. This product is battery-powered with true-rms, LED display and backlight. Digital multimeter model can measure AC / DC voltage, DC Current, Resistance, Continuity, Diodes, Transistor hFE and so on. Portable, and easy to use. It can service well in fielf of maintenance of auto, electrical engineering and teachig lab, ect.

Features:
With large overview backlit LCD display, date can be shown clearly.
Backlight can make display easy to read in the dark condition.
Small size, portable with a pouch, you can take it to anywhere you need it.
Compact ergonomic design, looks very nice.
One-handed operation perfect choice for carry-on measuring.
Allows for various electrical tests including Resistance, DC/AC Voltage and Current tests with a simple switch.
Easy to work, auto ranging accurately measures with self-calibration chip to make sure the accuracy and stability.

Specifications:
Brand Name: RICHMETERS
Model Number: RM111
Operating Temperature: 0 – 40 ℃
Operating Humidity: ≤75%RH
Storage Condition: -20~60℃
Storage Humidity: ≤80%RH
DIY Supplies: Electrical
Operating Mode: Auto/Manual Ranging
Measuring Inductance Range: no

Measuring Temperature Range: -20~1000 C/-4F-1832F
Measuring Capacitance Range: 9.99nF/99.99nF/999.9nF/9.99uF/99.99uF/999.9uF/9.999MF
Measuring Voltage Range: 999.9mV/9.999V/99.99V/999.9V
Measuring Current Range:60mA/600mA/10A
Measuring Resistance Range: 99.99/999.9/9.999k/99.99k/999.9K/999.9M
Frequency: 99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz
DC/AC Voltage(mV): 9.999mV/99.99mV
DC/AC Voltage(V): 999.9mV/9.999V/99.99V/750ACV(999.9DCV)
DC/AC Current (mA&A): 999.9mA/9.999A
DC/AC Current (uA): 99.99μA/999.9μA
Display Type: Digital Display
Diode Test: Yes
Continuity: Yes
Duty Cycle: 1%-99%
Sample Rate: 3 times per second
Power: 2 * 1.5V AAA batteries(Not Included)
Item weight: 113.3g / 3.99oz
Item size: 12.5 * 6.5 * 2.2cm / 4.92 * 2.56 * 0.87in
Package size: 16 * 10 * 4.5cm / 6.30 * 3.94 * 1.77in

Note:
1. Do NOT exceed the “maximum value” indicated in the Specification;
2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode Mode, the Continuity Mode, or the Temperature Mode;
3. Do NOT use the product when the batteries or the battery cover is not placed properly;
4. Turn off the product and remove the test leads from the test points before changing batteries or fuses.
5. Do not input voltage exceeds 36V DC or 25V AC when you are at the setting of measuring current.

Package list:
1 * Multimeter

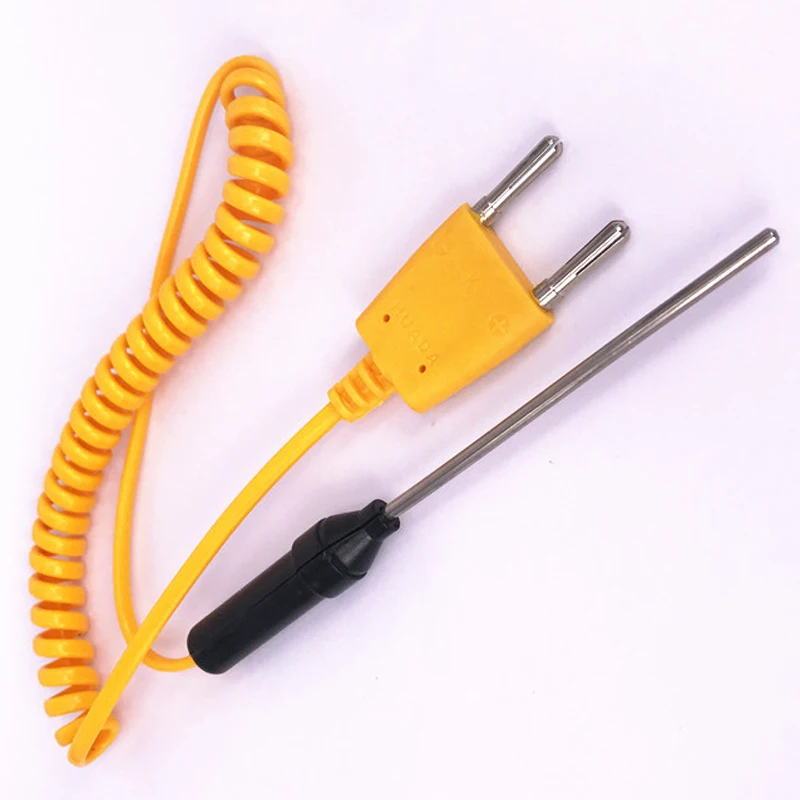

1 * Test lead+temperature sensor

1 * User manual

RM109 is the world’s first 9999 counts palm-size auto-ranging digital multieter.

The product is battery-powered with true-rms, LCD display and backlight.

1. Do NOT exceed the “maximum value” indicated in the Specification;

2. Do NOT input voltage at the Current Mode, the Resistance Mode, the Diode
Mode,

the Continuity Mode, or the Temperature Mode;

3. Do NOT use the product when the batteries or the battery cover is not placed
properly;

4. Turn off the product and remove the test leads from the test points before
changing batteries or fuses.

5. Do not input voltage exceeds 36V DC or 25V AC when you are at the setting of measuring current.
