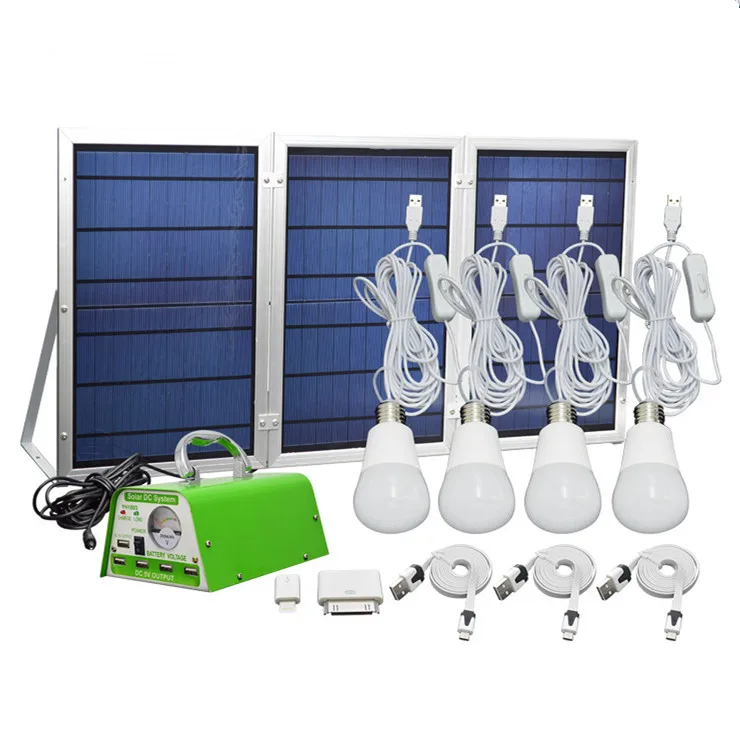

Xionel Solar Panel Lighting Kit,Solar Home DC System USB Solar Charger Power with 4 LED Light Bulbs as Emergency Light
Solar panel:Polycrystalline 11V 30W
Battery:Lithium battery,7.4V 13AH
Light source:2x2W LED+2x3W LED
THE PANEL OF THE SYSTEM:
Chagre:The red indicator light will turn on when connect to solar panel and there is a input power from solar panel.
Load:The indicator light will turn on once any of the five outlets has been connect to load and there is a output of power.
(1)Yellow area :low level of power stored in battery,the protection of over discharge function initiates ;
(2)Green area :medium level of power,this area shows the battery works in normal condition.
(3)Red area :high level of power,the protection of over charge function initiates.
POWER :the switch for the whole system
(1)When turn on this switch,all five outlets are ready to export power.The battery voltage needle points to Green area and shows how much power is stored in the battery.
(2)When turn off this switch,all five outlets stop to export power.The battery voltage needle points to zero.
IN CHARGE :connect to solar panel to charge the battery.The solar panel will charge the battery no matter the switch is being Turned ON or OFF.When the solar panel is connected to IN CHARGE and the switch is Turned ON,the CHARGE indicator will be lit up and the BATTERY VOLTAGE shows how much power the battery stores.The system can be charged and export power at the same time.
NOTE:Except solar panel,this system can be charged by AC or DC power.Recommend to use transformer: AC :100V—240Vwith a power output DC :9V 2A.
