1 set Miniature wind power generator charging combination Kit DIY Power generation experiment Small scale power generation model

1 set Miniature wind power generator charging combination Kit DIY Power generation experiment Small scale power generation model

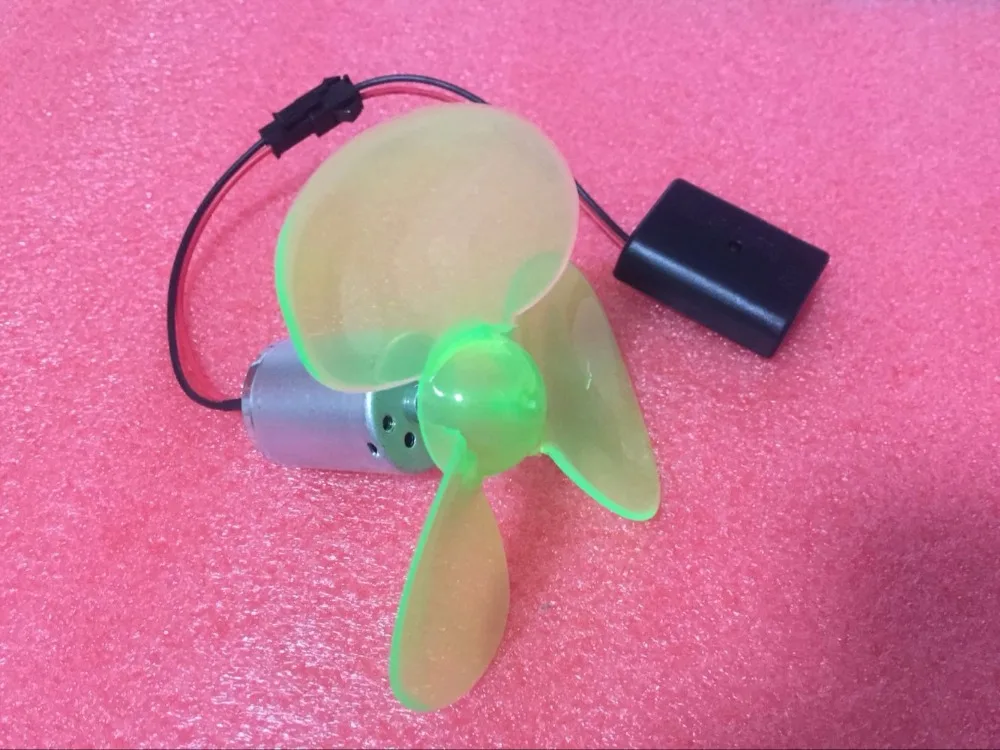

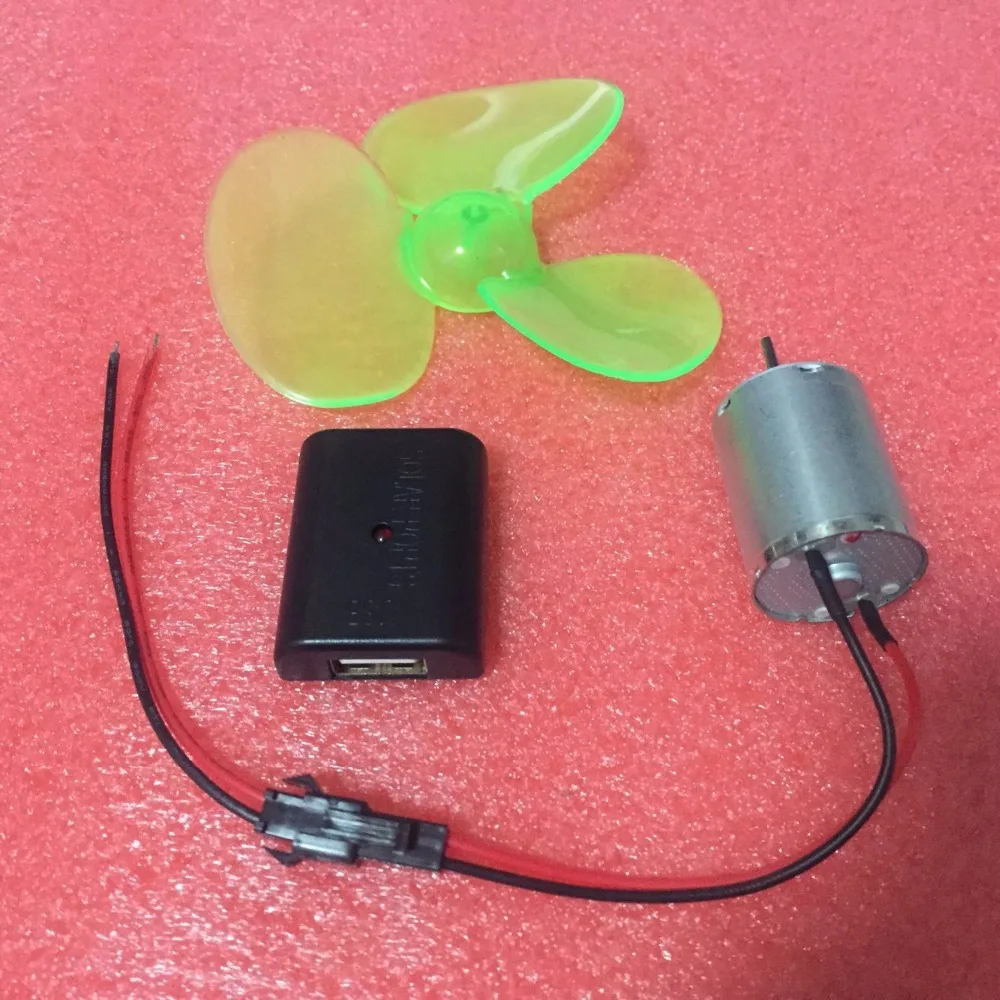

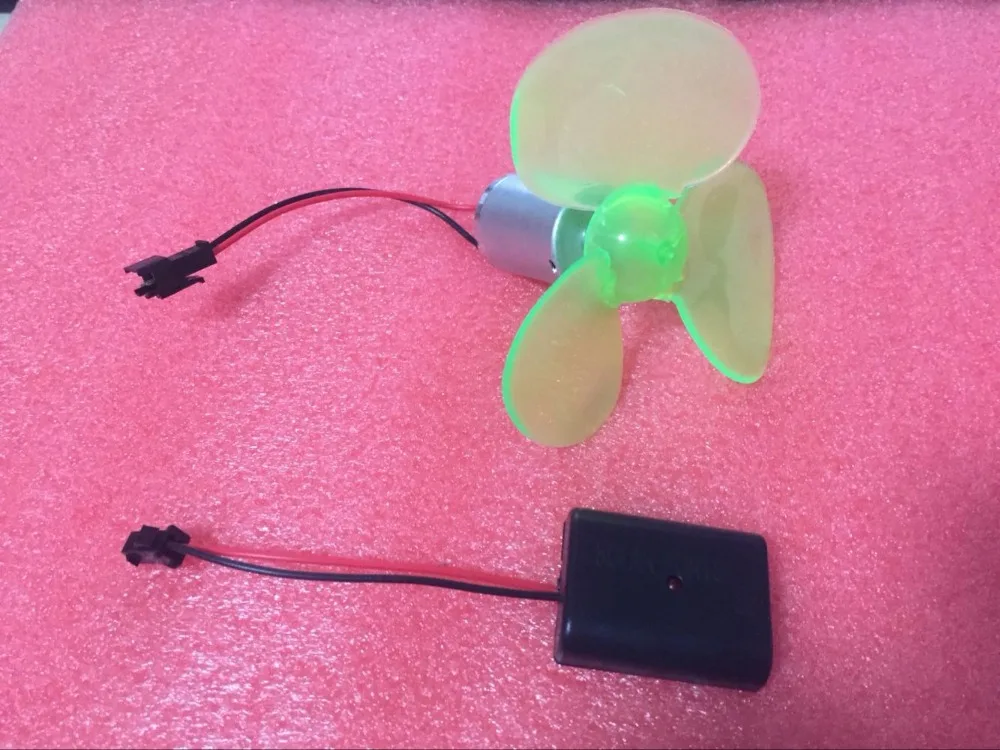

Products include: 1 PCS motor + 1 PCS fan + 1 Pcs Charging module + 2 strip Wiring

Note: Product not including data lines and mobile phones.
The product is only suitable for enthusiasts and advanced technology trials and for testing purposes!

Generator Specifications:
Motor diameter: 24.5mm
Motor height: 34.2mm
Output shaft length: 13.5mm
Output shaft diameter: 2mm
Power generation parameters:
Output voltage: 0.1 – 6V
Output current: 0.01 – 0.3A
RPM: 200-6000 rpm / min
Precautions:
1, the generator output positive and negative to correspond to the charging module, if the positive and negative does not correspond to burn the charging module.

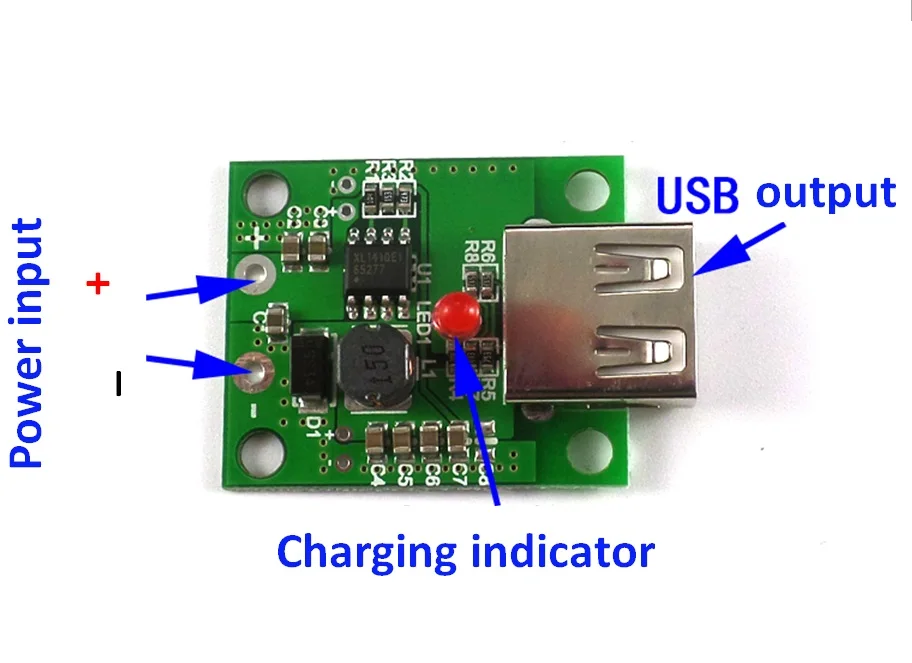

2, charging module parameters:
Output: USB maximum 2A 5V (0.2V error, usually between 4.9V-5.2V) Note: accurate voltage requirements, please do not buy.

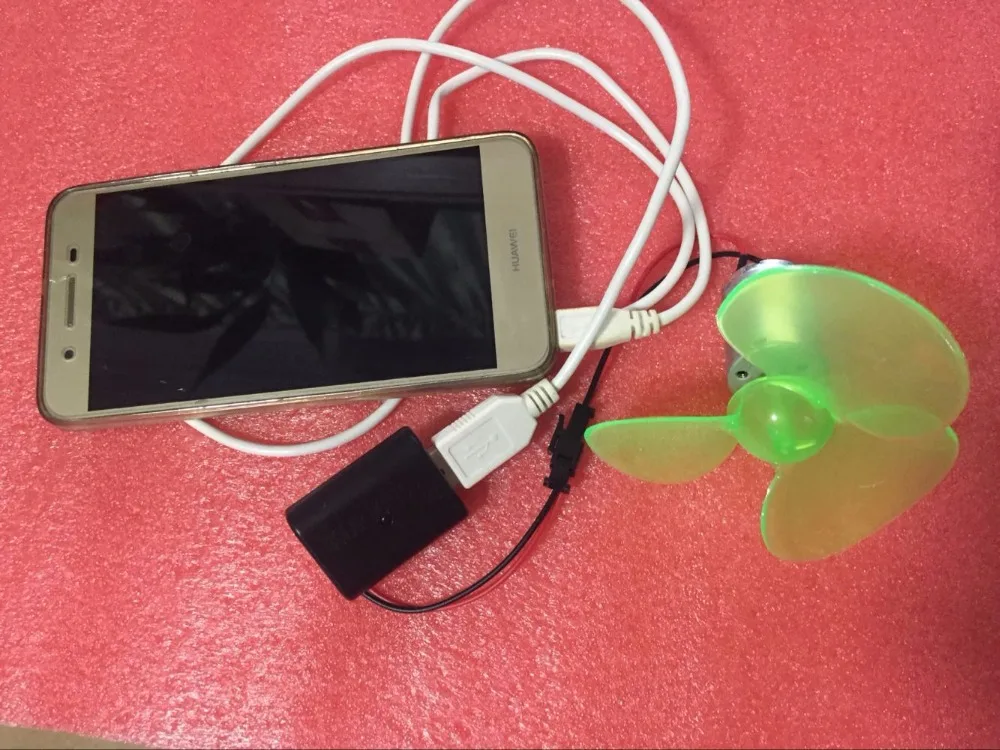

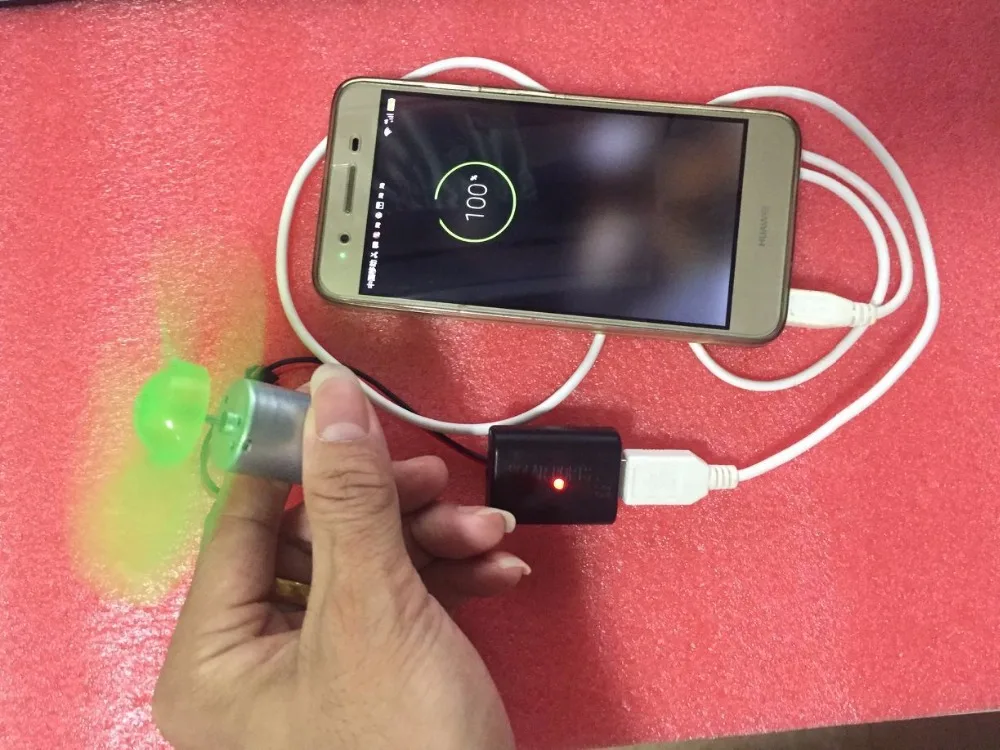

3, this power generation package only as an experimental test, the need for a larger wind (similar to the hair dryer second gear above) to charge for the phone, the general breeze can not charge for the phone.
