2 Color LCD Digital Multimeter AC/DC 750/1000V Voltmeter Ammeter Ohm Tester Meter Digital Multimeter DT830B Drop Shipping
99302 in stock
£6.06 – £6.46
|
|
|
DT-830B MINI Digital Multimeter with Buzzer Voltage Ampere Meter Test Probe AC/DC Voltage Ohm Tester Current Resistance Multi Tester
Features:
1.3 1/2 digits, 7segment, 0.5″high LCD Display.
2.Max display: 1999, Auto polarity display.
3.Small and compact design.
4.Overload protection on all ranges.
5.Sampling 2~3 times readings per second.
6.Diode assembly test / Temperature test/Transistor hFE test.
7.Low battery voltage indication.
Specification:
1.Model: DT-830B
2.Measuring range:
3.Max AC Current: 10A
4.Max AC Voltage range: 1000V
5.Max DC Voltage range: 750V
6.Resistance Measurement: 200 Ohm-2000K Ohm range
7.Temperature Test: -40-1000 ℃
8.Power Supply: 9V Battery (Not Included Here)
9.Color: Black /Yellow
10.Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78” (L*W*H)
11.Scale degree & Accuracy:
12.DC voltage: 200mV 100uv±(0.5% + 2)
2000mv 1mv
20v 10mv
200v 100mv
1000v 1v±(0.8% + 2)
13.AC voltage: 200V 100mv±(1.2% + 10)
750v 1v
14.DC current: 2000ua 1ua±(1% + 2)
20ma 10ua
200ma 100ua±(1.2% + 2)
10a 10ma±(2% + 2)
15.Resistance: 200Ω0.1Ω±(0.8% + 2)
2000Ω1
20kΩ10
200kΩ100
2000kΩ1000Ω±(1% + 2)
16.Temperature: -40-1000℃ 1℃±3%

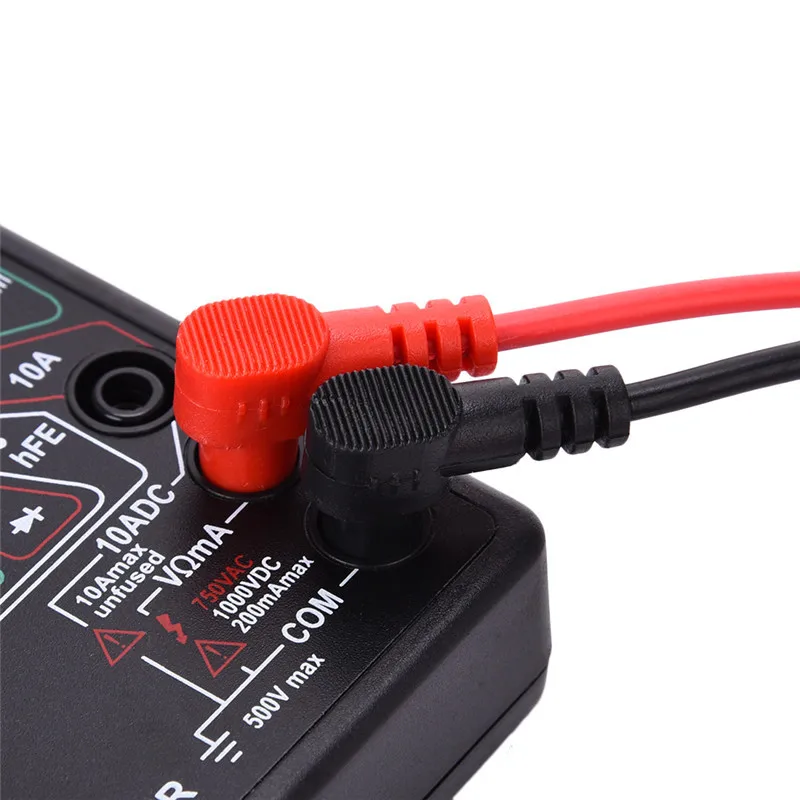

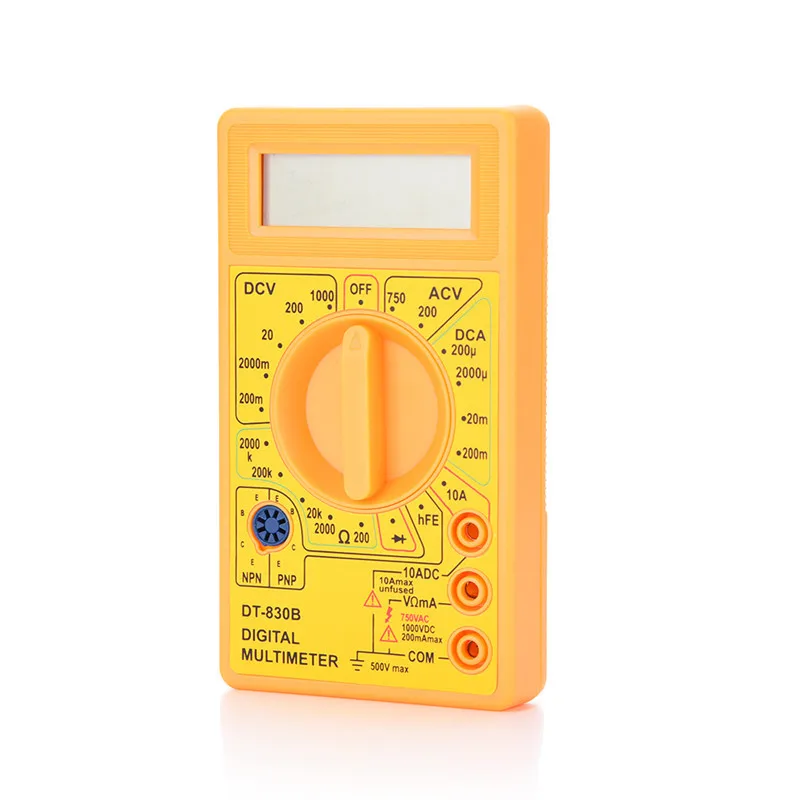

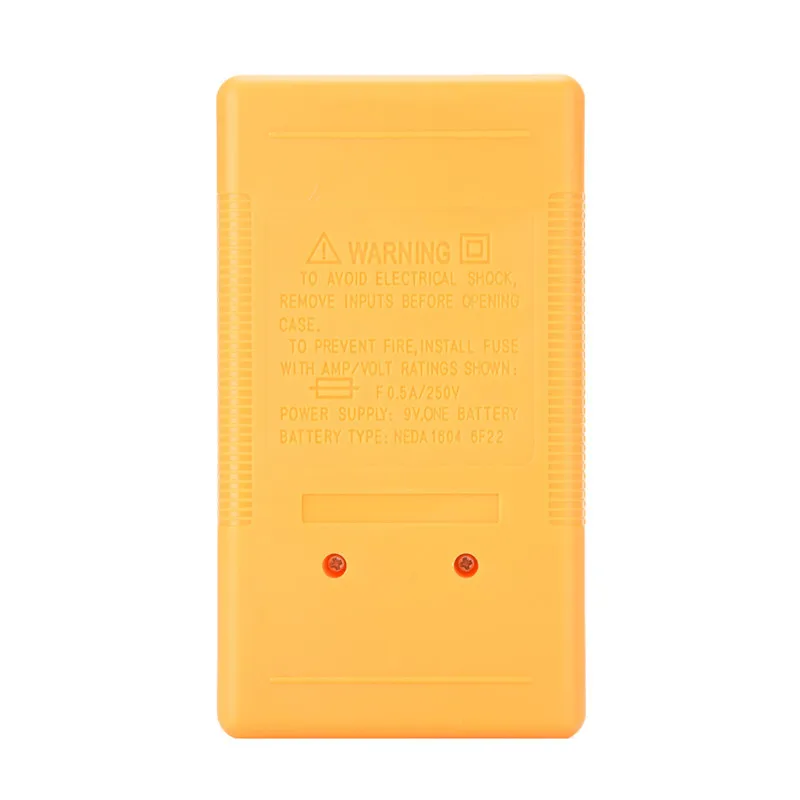

Product Showing
