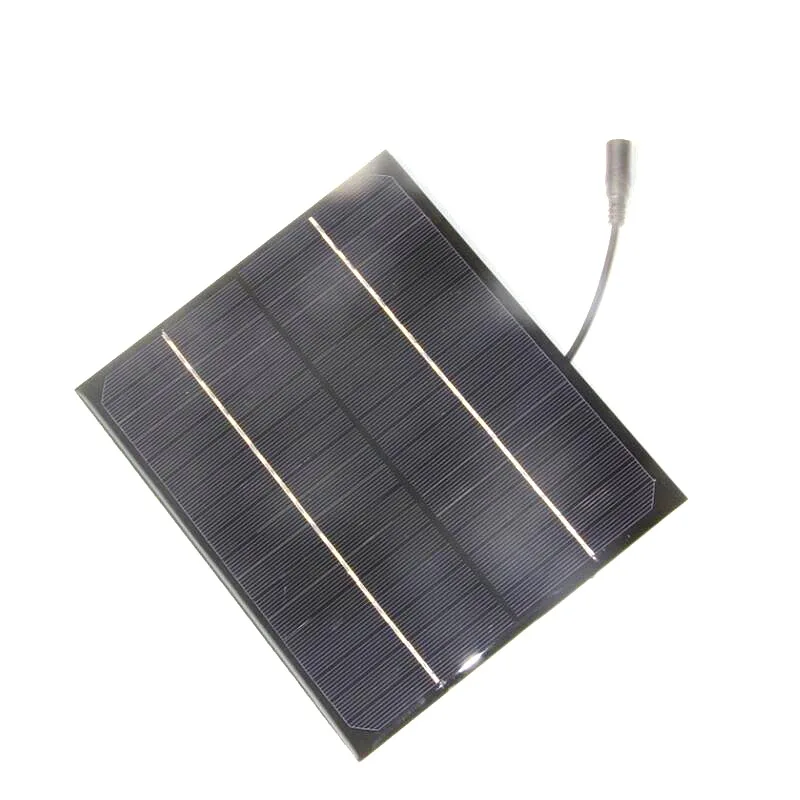

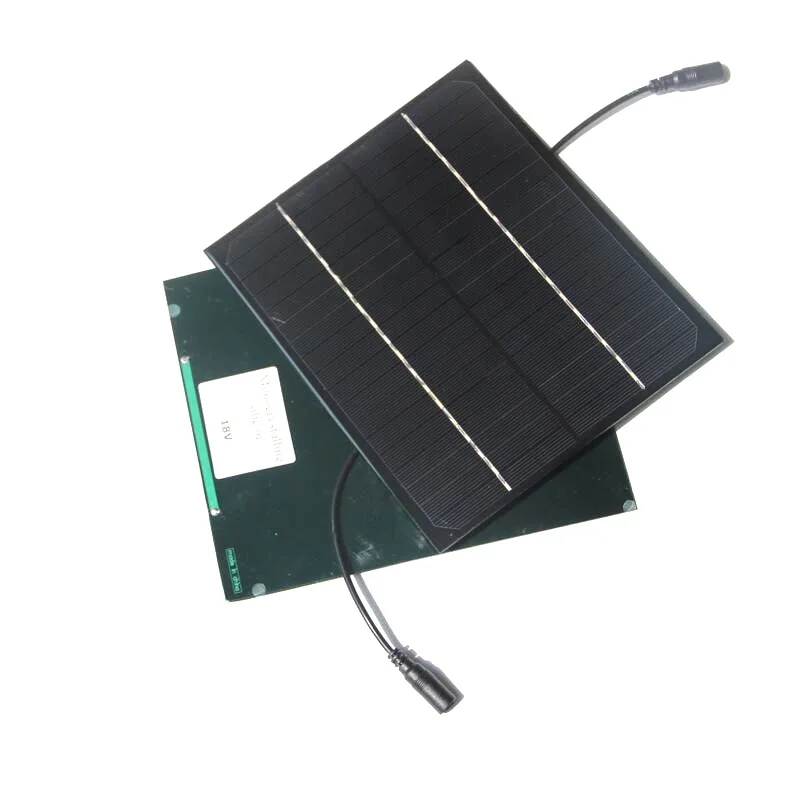

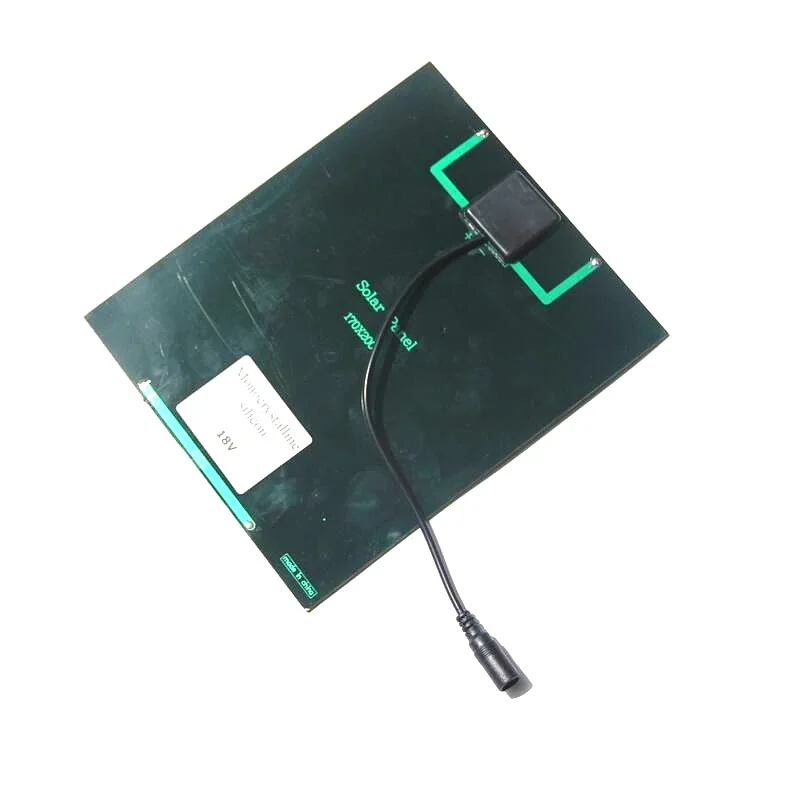

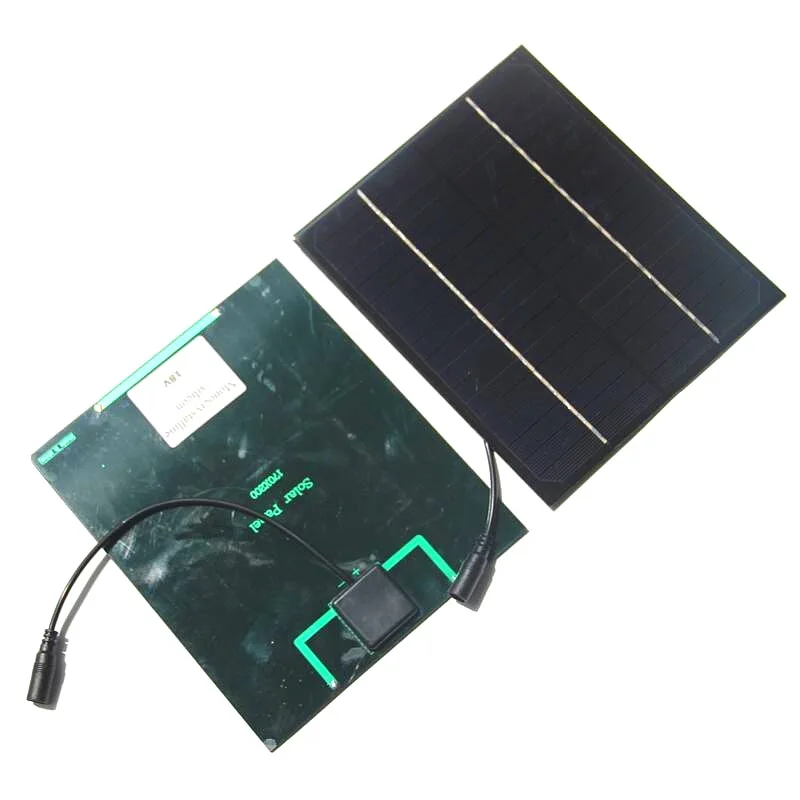

6W 18V 330mA Solar Panels Charger For 12V Battery DC Output Solar Cells Battery Charger DIY Solar System Kits 170*200MM

6W 18V 330mA Solar Panels Charger For 12V Battery DC Output Solar Cells Battery Charger DIY Solar System Kits 170*200MM

Applications:

1. high conversion rate and efficient output 2. excellent low light effect 3. high transmittance high quality tempered glass 4. unique technology enables components and solid resistance to the wind and snow, easy to install 5. within the framework of specific techniques to avoid water freezing and deformation

Introduction:

Max Power:6W

Working voltage: 18 v

Working current: 0-0.33A

Open circuit voltage: 21.5 V

Short circuit voltage: 0.4A

Size:170*200 * 3 mm

How to choose solar panel:

This table show the solar system configuration relationship between storage batteries and solar panels.
