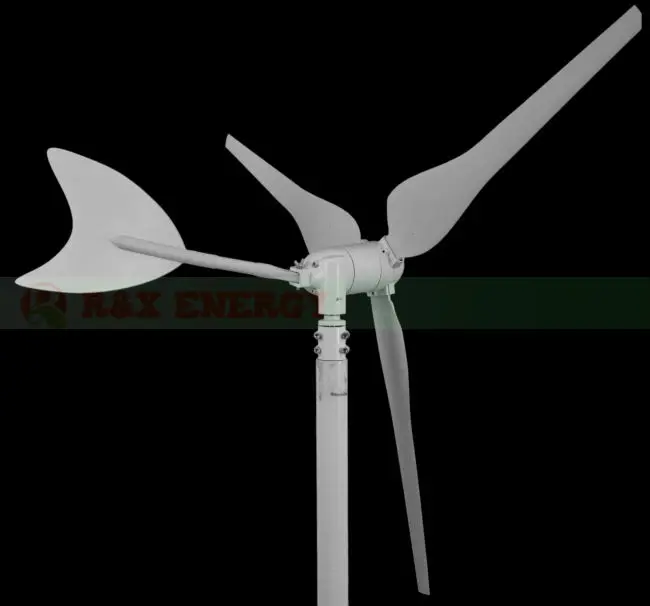

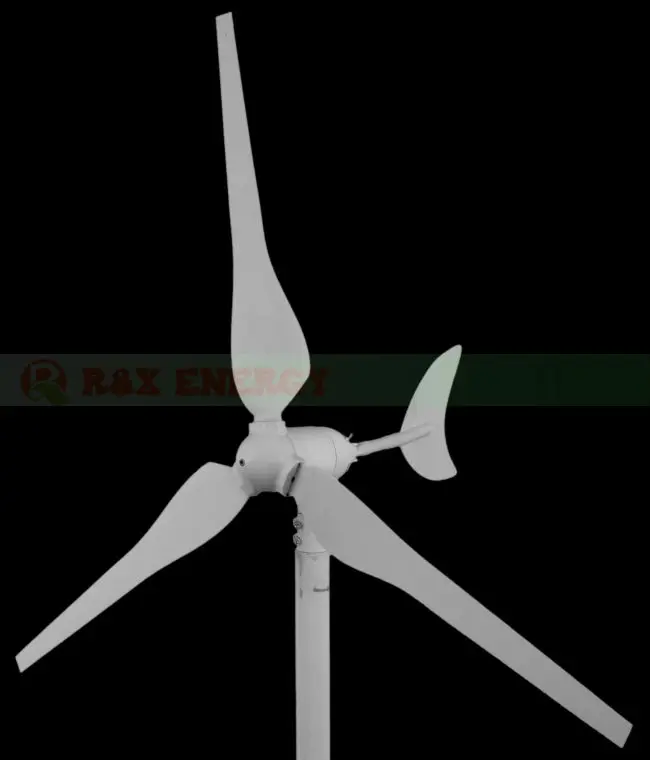

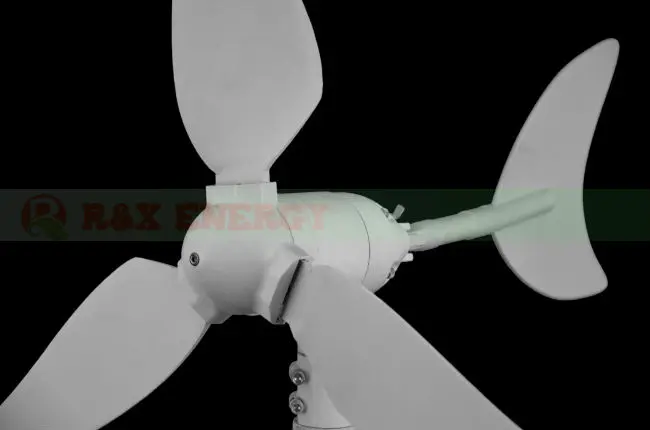

Wind generator kit 100w for street lamp. 12V/24V optional. Combine with wind controller.

Wind generator kit 100w for street lamp. 12V/24V optional. Combine with wind controller.

Please leave a message about whether you need 12V or 24V.

1. Which is using ultra-light composite materials and engineering
plastics.

2. The headpiece can be arbitrary rotated with anti-winding ability and automatically turned
protection when faced with strong winds.

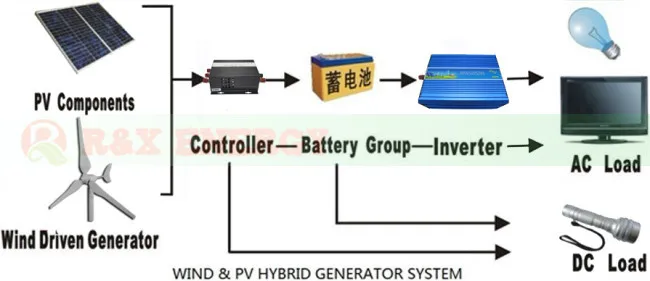

3. As high efficiency, they can be made hybrids system with solar panel.

Model	Hyacinth-100
Rated Power	100W
Rated Voltage	DC/AC 12V/24V
Rated Current	8.8A/4.4A
Rated Speedy	860r/m
Max Power	115W
Number of blade	3 PCS
Start-up wind speed	3m/s
Cut-in wind speed	3.5m/s
Cut-out wind speed	15m/s
Security wind speed	45m/s
Rated wind speed	12m/s

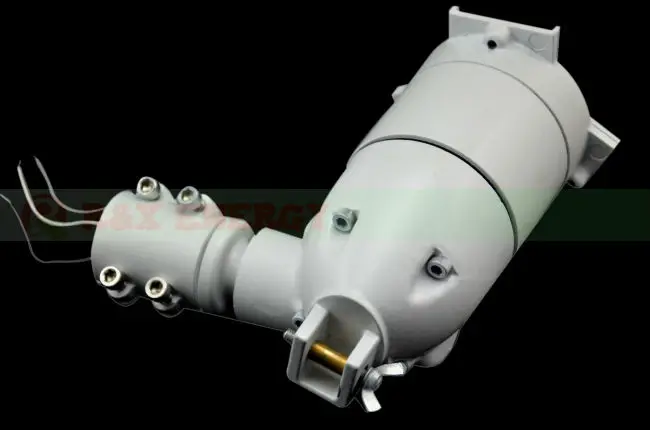

Engine	Three- phase permanent magnet generator
Rotor diameter	1050mm

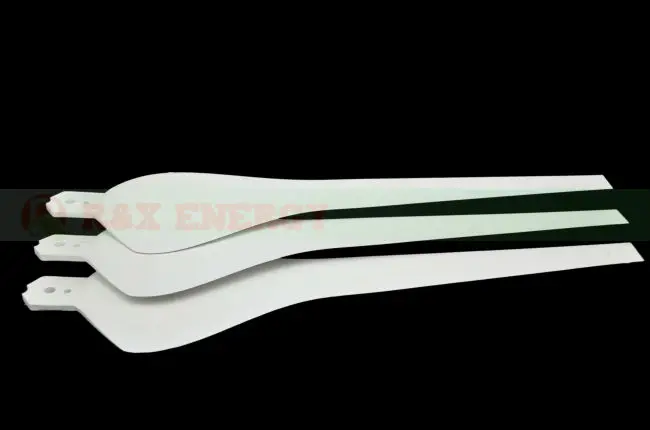

Blade material	Carbon fiber reinforced plastics
Output line anti-winding device	Overall three-phase commutator
Over-speed wind protection	Tip stall protection + turned protection + Electromagnetic brake
Life span	10years
Equipment surface protection	Aluminum oxide+plastic coating
Working temperature	-40°C to 70°C
N.W.	2.8kg
Packing material	Carton box and foam material
packing dimension	63cm*28cm*25cm
G.W.	3.5kg

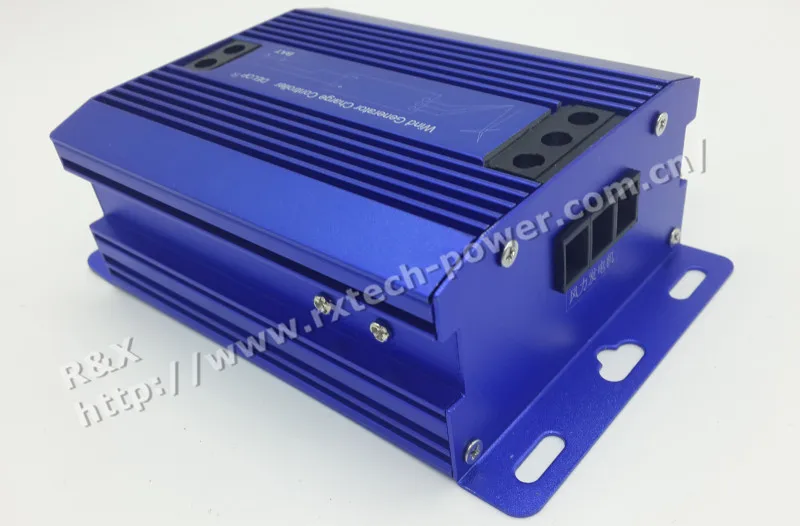

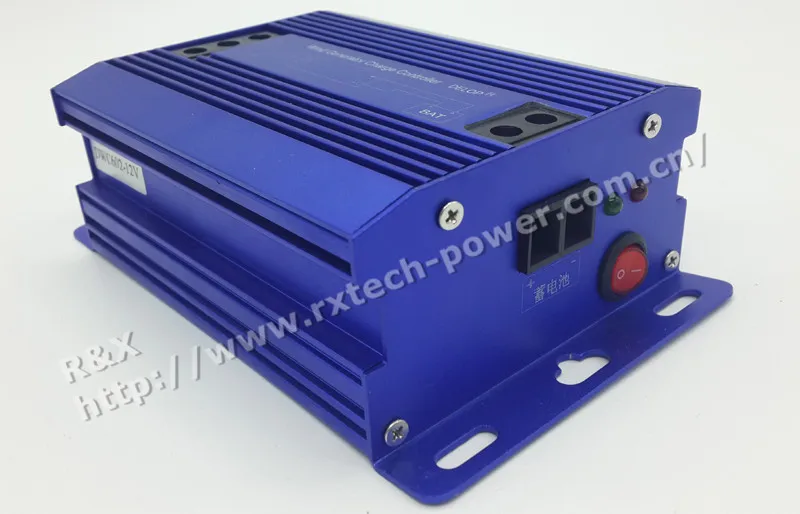

Controller*Inverter	300W

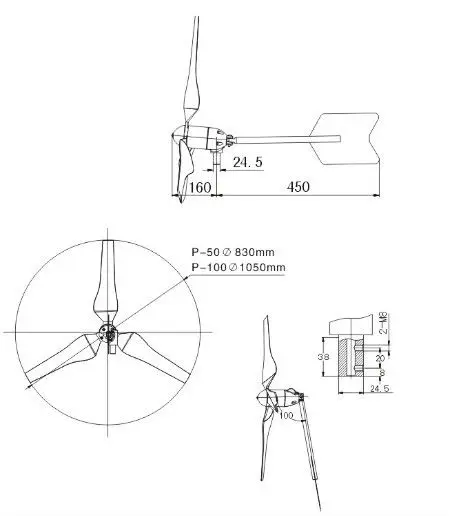

Drawing

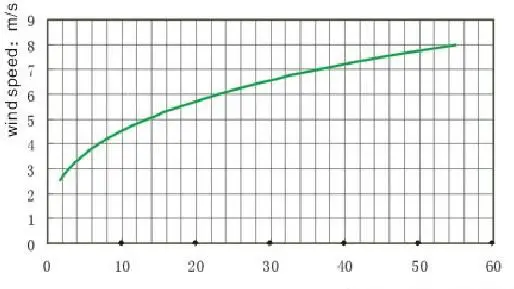

100W monthly power generation curve

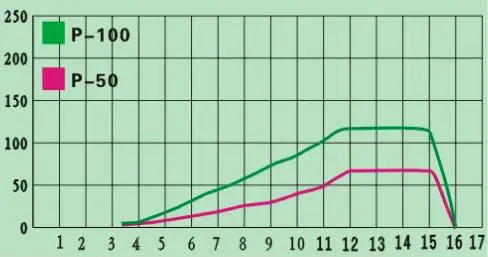

Powe curve
Certification

1.Simple structure,running stably,power supply for city lamp,monitoring and home.

2. Small size and flexibility,lively Colors,beautiful curve,low noise and environmental harmony.

3. Anti-Rust,Anti-Corruption Damp-Proof,Water-Proof,Stand-Proof.

4. Brand New in box

5. CE Certificate

6. ISO9001:2000 Quality Certification

7. ROHS Certification

8. Large power, low volume, high efficiency

9. Carbon fiber reinforced plastics blades, high efficiency of anti-wind ability,

move mutely and steadily

10. Blades with the ability of automatically stall protection under strong wind

11. 3 years free warranty
